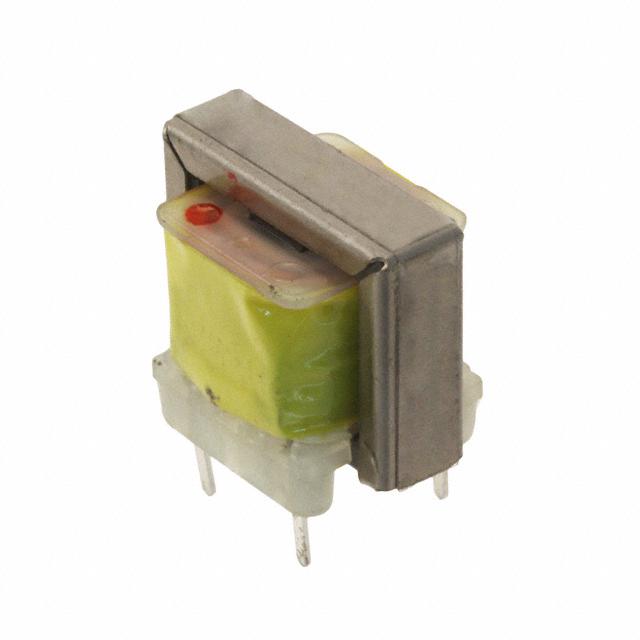

Tamura TTC-105-1 Data/Voice Coupling Audio Transformer

Enrgtech Part No: ET11766885
|
Manufacturer Part No:
TTC-105-1
|
Manufacturer: Tamura

TTC-105-1 Tamura Data/Voice Coupling Audio Transformer

Product Information

Frequency Range:

660Hz ~ 3.5kHz

HTSUS:

8504.40.8500

RoHS Status:

RoHS Compliant

Termination Style:

PC Pin

Power Level:

-45dB ~ 10dB

Approval Agency:

CSA-C22.2 No. 66-M1988, UL1459

DC Resistance (DCR) - Primary:

71Ohm

Insertion Loss:

3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz

Height - Seated (Max):

0.748" (19.00mm)

Operating Temperature:

DC Resistance (DCR) - Secondary:

117Ohm

Impedance - Secondary (Ohms):

600CT

Checking for live stock

The Tamura TTC-105-1 is a premium 1:1 audio transformer optimised for data and voice coupling applications. It features a compact through-hole design that saves valuable space on printed circuit boards. This component offers excellent isolation up to 1500VRMS for enhanced circuit safety. It maintains high signal integrity within the 660Hz to 3.5kHz frequency range. This reliable transformer is the perfect choice for telecommunications systems and professional signal processing applications.

Main Reasons to Use This Product

This Tamura TTC-105-1 audio transformer provides superior electrical isolation to protect sensitive electronics. It ensures a flat frequency response for clear voice transmission.

High isolation voltage prevents electrical interference.
Reliable performance in telecommunication architectures.

Standout Features & Technical Information

Impedance: 600 Ω (Primary) / 600 Ω CT (Secondary).
Turns Ratio: 1:1.
Frequency Range: 660 Hz to 3.5 kHz.
Isolation Voltage: 1500 VRMS.
Mounting Type: Through Hole (PC Pin).
Compliance: UL1459 and CSA-C22.2 certified.

Multiple Devices Location 10/Sep/2020(PCN Assembly/Origin)

TTC-105-1(Datasheets)
