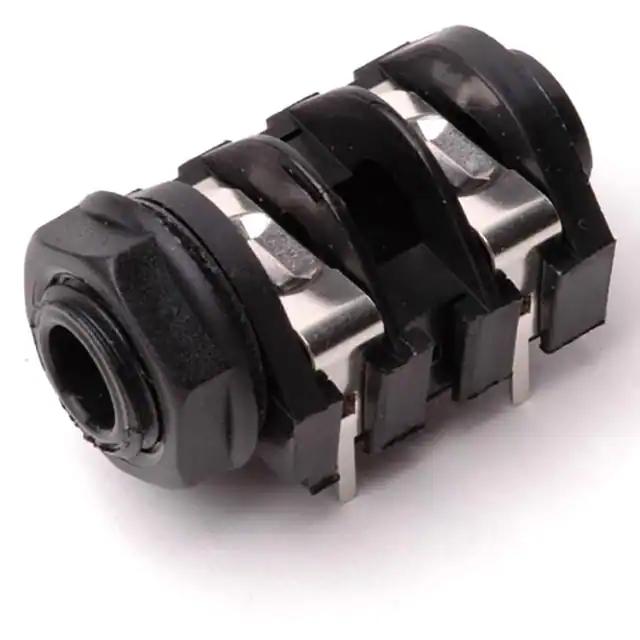

CLIFF Electronic Components Ltd 503

503 CLIFF Electronic Components Ltd
CLIFF Electronic Components Ltd

Product Information

Actual Diameter:
-
HTSUS:
7318.15.0000
Thread Size:
7/16"-20
Operating Temperature:
-
Panel Hole Size:
-
Internal Switch(s):
Three Switches
Shielding:
Unshielded
Voltage - Rated:
-
Cable Opening:
-
Insulation Color:
-
Industry Recognized Mating Diameter:
6.35mm (0.250", 1/4") - Headphone
Includes:
3 pcs - 1 Connector, 1 Nut, 1 Washer
Signal Lines:
Stereo (3 Conductor, TRS)
Number of Positions/Contacts:
3 Conductors, 6 Contacts
Package:
Bulk
Gender:
Female
Connector Type:
Phone Jack
Body Material:
-
Termination:
Solder
Housing Material:
-
Body Color:
Black
Features:
-
Mounting Type:
Panel Mount, Through Hole, Right Angle
Mating Length/Depth:
-
Series:
S2
Contact Material - Plating:
-
Contact Material:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by CLIFF Electronic Components Ltd. The manufacturer part number is 503. It is assigned with possible HTSUS value of 7318.15.0000. It has a typical thread size of 7/16"-20. Internal switch options: three switches. Furthermore, the product is shielded with unshielded. The product has 6.35mm (0.250", 1/4") - headphone industrial recognised mating diameter. The product is also supplied with 3 pcs - 1 connector, 1 nut, 1 washer. Features stereo (3 conductor, trs) signal lines. The product consists of 3 conductors, 6 contacts positions or contacts. It is shipped in bulk package . In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. The product features solder termination style. The body has a classic black colour. The product is available in panel mount, through hole, right angle configuration. The product s2, is a highly preferred choice for users. The product is designated with the ear99 code number.
