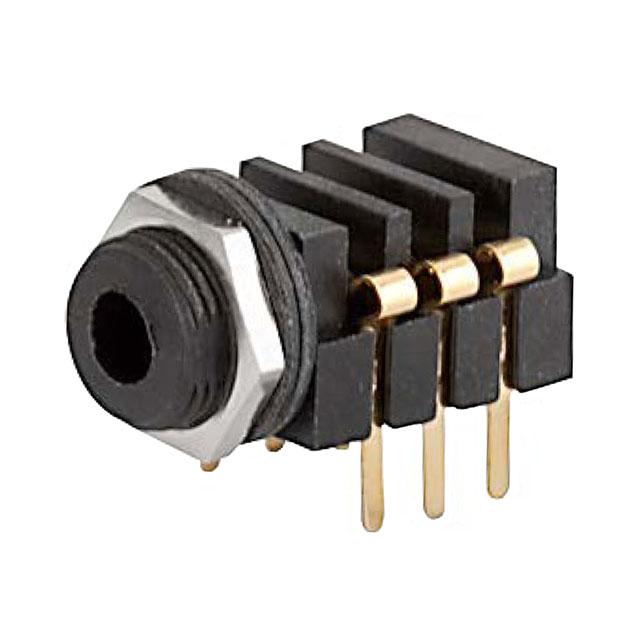

Schurter Inc. 4802.2330

4802-2330 Schurter Inc. 4802.2330
4802.2330
Schurter Inc.

Product Information

Actual Diameter:
0.146" (3.70mm)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Thread Size:
Whitworth (UK)
Operating Temperature:
-20°C ~ 70°C
Panel Hole Size:
0.323" (8.20mm)
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Three Switches
Shielding:
Unshielded
Voltage - Rated:
12VAC/DC
Cable Opening:
-
title:
4802.2330
REACH Status:
REACH Unaffected
Includes:
2 pcs - 1 Connector, 1 Nut
edacadModel:
4802.2330 Models
Signal Lines:
Stereo (3 Conductor, TRS)
Number of Positions/Contacts:
3 Conductors, 6 Contacts
edacadModelUrl:
/en/models/1731037
Insulation Color:
-
Gender:
Female
Connector Type:
Phone Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
-
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
1 A
Housing Material:
Plastic
Body Color:
Black
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Mating Length/Depth:
0.732" (18.60mm)
Series:
4802
Packaging:
Bulk
Contact Material - Plating:
Gold
Contact Material:
Brass
ECCN:
EAR99
Checking for live stock

This is manufactured by Schurter Inc.. The manufacturer part number is 4802.2330. Its actual diameter is 0.146" (3.70mm). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It has a typical thread size of whitworth (uk). The product has -20°c ~ 70°c operating temperature range. The product features a panel hole size of 0.323" (8.20mm). The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. Internal switch options: three switches. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vac/dc. In addition, it is reach unaffected. The product is also supplied with 2 pcs - 1 connector, 1 nut. Features stereo (3 conductor, trs) signal lines. The product consists of 3 conductors, 6 contacts positions or contacts. In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 1 a. The product also features robust plastic housing material. The body has a classic black colour. The splendid features of the product include mounting hardware, thread lock. The product is available in panel mount, through hole, right angle configuration. The product has 0.732" (18.60mm) mating length or depth. The product 4802, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. While the contact is gold. The product is made from sturdy brass materials. The product is designated with the ear99 code number.
