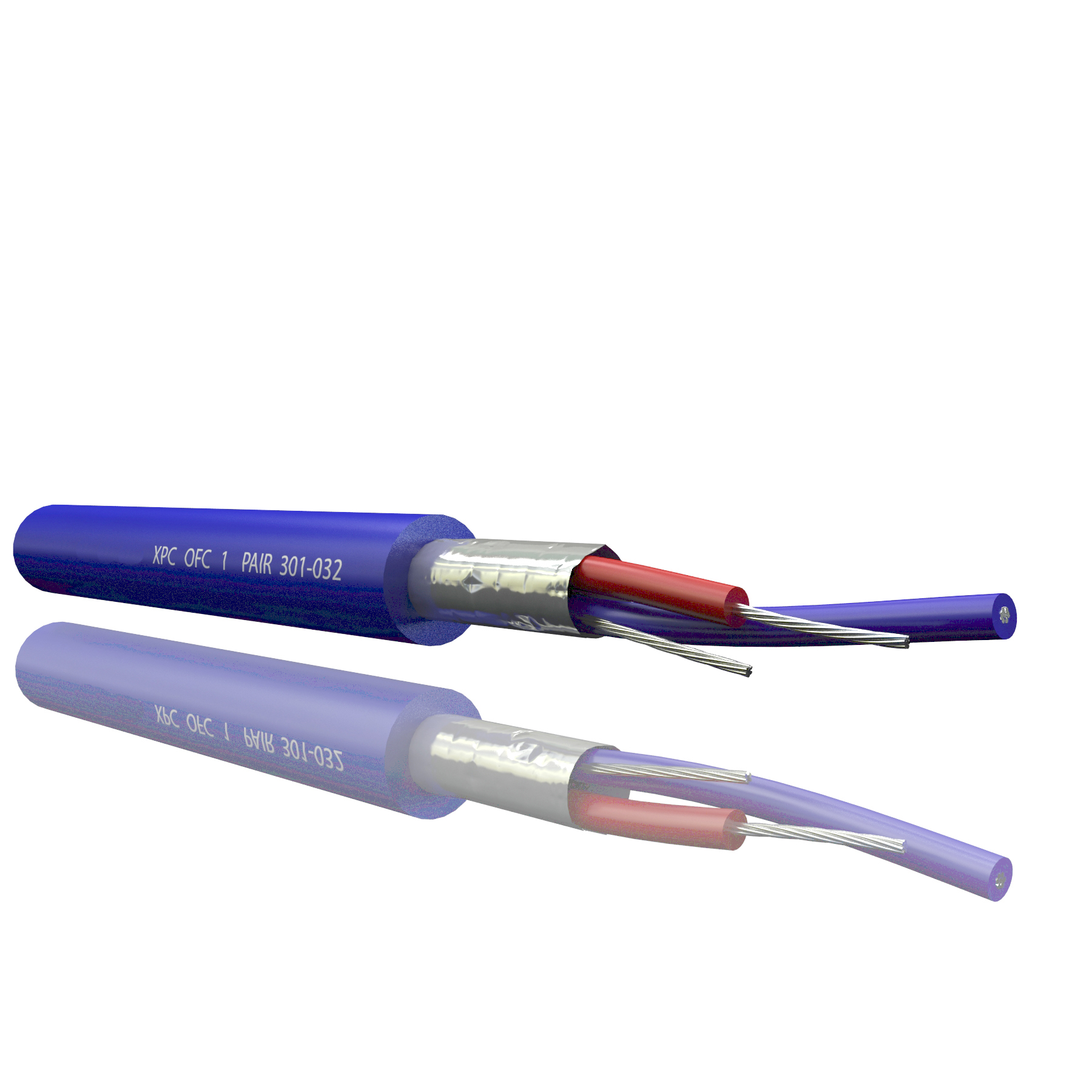

RS PRO Screened 2 Core, 0.25 mm² CSA, 3.5mm od, 100m, Blue

214-9604 RS PRO Screened 2 Core, 0.25 mm² CSA, 3.5mm od, 100m, Blue
RS PRO

Product Information

American Wire Gauge:
24 AWG
Conductor Resistance:
85 Ω/km
Screened/Unscreened:
Screened
Number of Cores:
2
Outer Diameter:
3.5mm
Number of Strands:
7
Sheath Material:
PVC
Cable Shape:
Multicore
Core Strands:
7/0.2 mm
Shielded/Unshielded:
Shielded
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+70°C
Length:
100m
Screen Type:
Aluminium Foil, Polyester Tape
Conductor Material:
Oxygen Free Copper
Size of Strands:
0.2 mm
Capacitance Core To Core:
85pF/m
Sheath Colour:
Blue
Capacitance Core To Screen:
130pF/m
Cross Sectional Area:
0.25 mm²
Minimum Operating Temperature:
-20°C
Insulation Material:
XLPE
RoHs Compliant
Checking for live stock

This is Screened 2 Core 0.25 mm² CSA 3.5mm od 100m Blue manufactured by RS PRO. The manufacturer part number is 214-9604. Features 24 awg - American Wire Gauge. The conductor has 85 ω/km resistance. Screen Options - screened. The product consists of 2 cores. Its outer diameter is 3.5mm. Additionally, it contains 7 strands. The sheath is constructed from durable and adorable pvc material. Moreover, this cable has a multicore shape. The core strands are 7/0.2 mm. Moreover, the product is shielded . It has a stranded type conductor strand . It has a maximum operating temperature of +70°c. Its accurate length is 100m. It has a/an aluminium foil, polyester tape type screen . The conductor is made from oxygen free copper material. The strand size includes 0.2 mm. It has a standard 85pf/m capacitance core to core . The sheath has an adorable blue colour. It has about 130pf/m capacitance core to screen . The product has 0.25 mm² cross section area. Whereas, the minimum operating temperature of the product is -20°c. It has a robust xlpe insulation material.

pdf icon
RS PRO Datasheet(Technical Reference)
