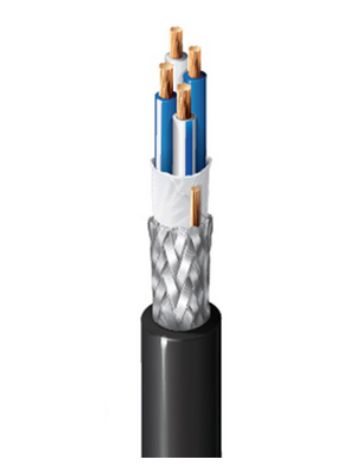

This is 4 Core Screened Microphone Cable 100 V ac 4.83mm od Flame Retardant manufactured by Belden. The manufacturer part number is Y64695 B591000. Screen Options - screened. The product has a current rating of 1 a. The conductor has 36 ω/1000 ft resistance. Features 26 awg - American Wire Gauge. The product consists of 4 cores. Its outer diameter is 4.83mm. Additionally, it contains 30 strands. The sheath is constructed from durable and adorable pvc material. Moreover, this cable has a multicore shape. The core strands are 30/40. It has a stranded type conductor strand . It has a maximum operating temperature of +60°c. It has a drain wire included yes . Moreover, the product has a nominal 100 v ac voltage rating. The product has a flame retardant fire behaviour. The typical characteristic impedance includes 40 ω. It has a/an braid type screen . The conductor is made from bare copper material. The product y64695, is a highly preferred choice for users. The strand size includes 0.07 mm. It has a standard 39.2pf/ft capacitance core to core . It has about 57.4pf/ft capacitance core to screen . The product has 0.14 mm² cross section area. Whereas, the minimum operating temperature of the product is -20°c. Moreover, it has a/an microphone cable type audio cable . It has a robust pe insulation material.
For more information please check the datasheets.
