Maximum Power:
70 W, 130 W
Dimensions:
14.1 x 6.2 x 1.05mm
Mounting Type:
Surface Mount
Application:
Active Speakers, Blu-Ray Disk, DVD Receivers, High End Soundbar, Mini Combo Systems
Power Supply Type:
Single
Minimum Operating Temperature:
0 °C
Number of Channels per Chip:
2
Typical Single Supply Voltage:
32 V
Output Type:
2 Channel Stereo
Height:
1.05mm
Width:
6.2mm
Length:
14.1mm
Package Type:
HTSSOP
Typical Gain Bandwidth Product:
100kHz
Input Signal Type:
Differential
Amplifier Type:
Class-D
Maximum Operating Temperature:
+70 °C
Pin Count:
44
Output Signal Type:
Single Ended
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
0°C ~ 70°C (TA)
Max Output Power x Channels @ Load:
130W x 2 @ 4Ohm
Package / Case:
44-PowerTSSOP (0.240", 6.10mm Width)
Type:
Class D
edacadModel:
TPA3250D2DDW Models
REACH Status:
REACH Unaffected
Output Type:
2-Channel (Stereo)
edacadModelUrl:
/en/models/6572409
Package:
Tube
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
12 Weeks
Features:
Depop, Short-Circuit Protection
Mounting Type:
Surface Mount
Series:
PurePath™
Supplier Device Package:
44-HTSSOP
Voltage - Supply:
12V ~ 36V
Base Product Number:
TPA3250
ECCN:
EAR99

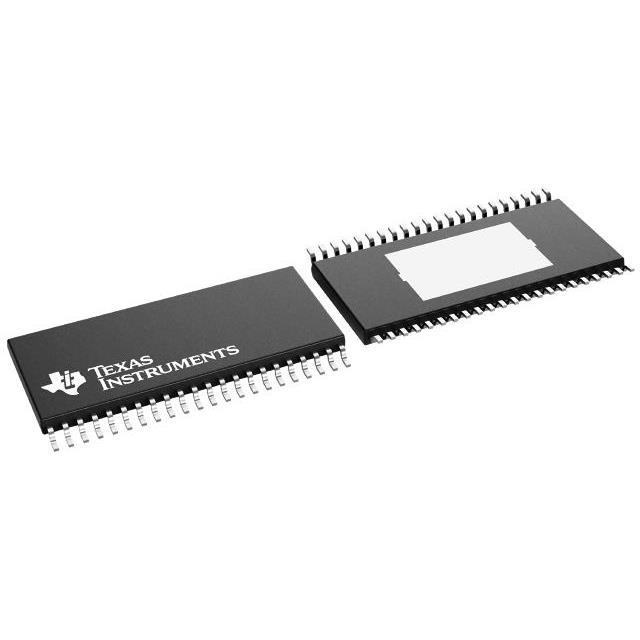

This is 2-Channel Audio Amplifier 100kHz 44-Pin HTSSOP Stereo manufactured by Texas Instruments. The manufacturer part number is TPA3250D2DDW. It has a maximum 70 w, 130 w power . The given dimensions of the product include 14.1 x 6.2 x 1.05mm. The product is available in surface mount configuration. Applications Information involves active speakers, blu-ray disk, dvd receivers, high end soundbar, mini combo systems. It is a type of single power supply. Whereas, the minimum operating temperature of the product is 0 °c. It comprises 2 channels per chip. It has a typical single supply voltage of 32 v. Furthermore, it has a2 channel stereo output. In addition, the height is 1.05mm. Furthermore, the product is 6.2mm wide. Its accurate length is 14.1mm. The package is a sort of htssop. Features 100khz typical gain bandwidth. The input signal is a kind of differential signal. It is a sort of a class-d amplifier. It has a maximum operating temperature of +70 °c. It contains 44 pins. The output signal is a kind of single ended. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has 0°c ~ 70°c (ta) operating temperature range. It has a maximum output power into channels at given loads, such as 130w x 2 @ 4ohm. Moreover, the product comes in 44-powertssop (0.240", 6.10mm width). It comes in class d configuration. In addition, it is reach unaffected. Furthermore, it has a2-channel (stereo) output. It is shipped in tube package . Its typical moisture sensitivity level is 3 (168 hours). It has a long 12 weeks standard lead time. The splendid features of the product include depop, short-circuit protection. The product purepath™, is a highly preferred choice for users. 44-htssop is the supplier device package value. It has optimum voltage supply of 12v ~ 36v. Moreover, it corresponds to tpa3250, a base product number of the product. The product is designated with the ear99 code number.
