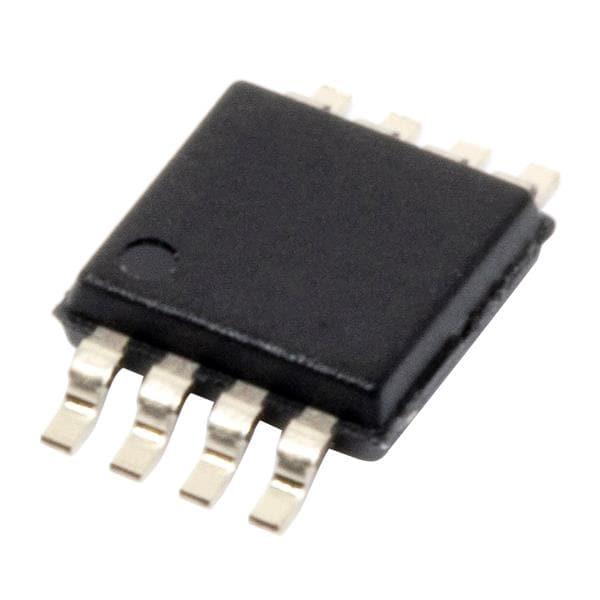

SSM2305RMZ-REEL7 Analog Devices, Audio Amplifier IC, 8-Pin MSOP Mono

SSM2305RMZ-REEL7  Analog Devices, Audio Amplifier IC, 8-Pin MSOP Mono
Analog Devices

Product Information

Minimum CMRR:
55dB
Amplifier Class:
Class D
Maximum Power:
2.8W
Dimensions:
3.2 x 3.2 x 0.95mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Number of Channels per Chip:
1
Typical Gain Bandwidth Product:
20kHz
Output Type:
1 Channel Mono
Input Signal Type:
Differential
Typical Single Supply Voltage:
5.5 V
Package Type:
MSOP
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Audio
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Output Signal Type:
Differential
RoHs Compliant
Checking for live stock

This is Audio Amplifier IC 8-Pin MSOP Mono manufactured by Analog Devices. The manufacturer part number is SSM2305RMZ-REEL7. It is designed with a minimum 55db CMRR . Its amplifiers is of class d . It has a maximum 2.8w power . The given dimensions of the product include 3.2 x 3.2 x 0.95mm. The product is available in surface mount configuration. It is a type of single power supply. It comprises 1 channels per chip. Features 20khz typical gain bandwidth. Furthermore, it has a1 channel mono output. The input signal is a kind of differential signal. It has a typical single supply voltage of 5.5 v. The package is a sort of msop. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a audio amplifier. It has a maximum operating temperature of +85 °c. It contains 8 pins. The output signal is a kind of differential.
