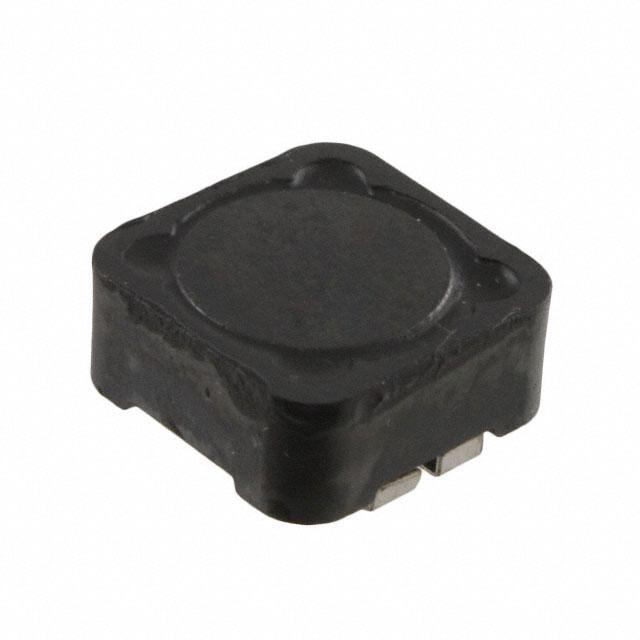

Eaton - Electronics Division DRQ125-681-R

DRQ125-681-R Eaton - Electronics Division
DRQ125-681-R
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Number of Coils:
2
Operating Temperature:
-40°C ~ 125°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
Nonstandard
Tolerance:
±20%
DC Resistance (DCR) - Series:
4.42Ohm
Shielding:
Shielded
edacadModel:
DRQ125-681-R Models
edacadModelUrl:
/en/models/667250
Package:
Tape & Reel (TR)
Inductance - Connected In Series:
2.719 mH
Size / Dimension:
0.492" L x 0.492" W (12.50mm x 12.50mm)
Current Saturation - Parallel:
850 mA
standardLeadTime:
11 Weeks
Current Rating - Parallel:
700 mA
Mounting Type:
Surface Mount
Current Saturation - Series:
425 mA
Series:
DRQ
DC Resistance (DCR) - Parallel:
1.1Ohm
Height:
0.236" (6.00mm)
Inductance - Connected In Parallel:
679.8 µH
Current Rating - Series:
350 mA
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is DRQ125-681-R. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. It consists of 2 coils. The product has -40°c ~ 125°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Features 4.42ohm DCR. Furthermore, the product is shielded with shielded. It is shipped in tape & reel (tr) package . While the series connected inductance is 2.719 mh. The product's diameters include 0.492" l x 0.492" w (12.50mm x 12.50mm). The parallel current saturation is 850 ma. It has a long 11 weeks standard lead time. It features 700 ma of parallel current rating. The product is available in surface mount configuration. The series current saturation of 425 ma. The product drq, is a highly preferred choice for users. It has 1.1ohm parallel DC resistance. In addition, the height is 0.236" (6.00mm). It has [Inductance - Connected in Parallel] inductance at parallel connection. The series current rated with 350 ma. The product is designated with the ear99 code number.
