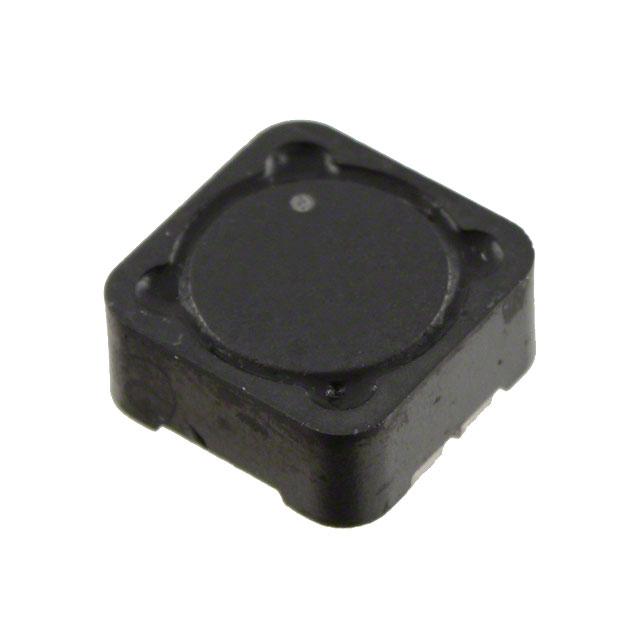

Eaton - Electronics Division DRQ125-330-R

DRQ125-330-R Eaton - Electronics Division
DRQ125-330-R
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Number of Coils:
2
Operating Temperature:
-40°C ~ 125°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
Nonstandard
Tolerance:
±20%
DC Resistance (DCR) - Series:
203mOhm
Shielding:
Shielded
title:
DRQ125-330-R
REACH Status:
REACH Unaffected
edacadModel:
DRQ125-330-R Models
edacadModelUrl:
/en/models/667243
Manufacturer:
Eaton - Electronics Division
Inductance - Connected In Series:
135 µH
Size / Dimension:
0.492" L x 0.492" W (12.50mm x 12.50mm)
Current Saturation - Parallel:
3.84 A
Inductance - Connected In Parallel:
33.74 µH
standardLeadTime:
13 Weeks
Current Rating - Parallel:
3.28 A
Mounting Type:
Surface Mount
Current Saturation - Series:
1.92 A
Series:
DRQ
DC Resistance (DCR) - Parallel:
50.5mOhm
Height:
0.236" (6.00mm)
Packaging:
Tape & Reel (TR)
Current Rating - Series:
1.64 A
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is DRQ125-330-R. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. It consists of 2 coils. The product has -40°c ~ 125°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Features 203mohm DCR. Furthermore, the product is shielded with shielded. In addition, it is reach unaffected. The eaton - electronics division's product offers user-desired applications. While the series connected inductance is 135 µh. The product's diameters include 0.492" l x 0.492" w (12.50mm x 12.50mm). The parallel current saturation is 3.84 a. It has [Inductance - Connected in Parallel] inductance at parallel connection. It has a long 13 weeks standard lead time. It features 3.28 a of parallel current rating. The product is available in surface mount configuration. The series current saturation of 1.92 a. The product drq, is a highly preferred choice for users. It has 50.5mohm parallel DC resistance. In addition, the height is 0.236" (6.00mm). In addition, tape & reel (tr) is the available packaging type of the product. The series current rated with 1.64 a. The product is designated with the ear99 code number.
