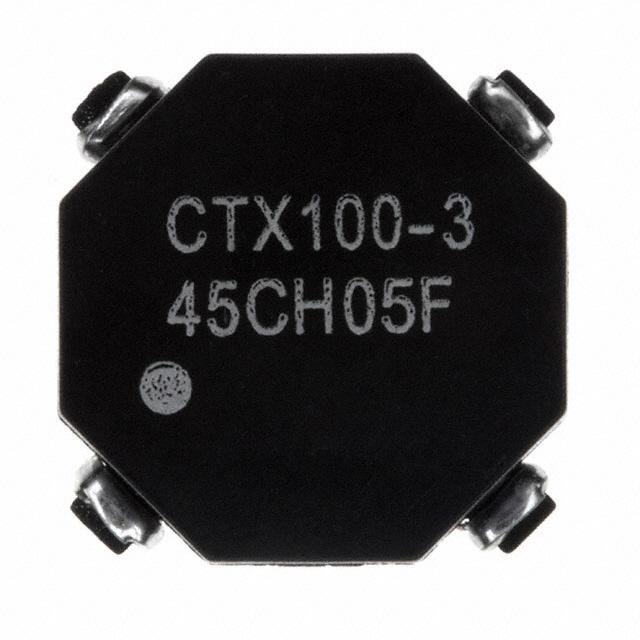

Eaton - Electronics Division CTX100-3-R

CTX100-3-R Eaton - Electronics Division
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Number of Coils:
2
Operating Temperature:
-40°C ~ 85°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
Nonstandard
Tolerance:
±20%
edacadModel:
CTX100-3-R Models
DC Resistance (DCR) - Series:
1.381Ohm Max
Shielding:
Unshielded
edacadModelUrl:
/en/models/953557
Manufacturer:
Eaton - Electronics Division
Inductance - Connected In Series:
405.6 µH
Size / Dimension:
0.550" L x 0.550" W (13.97mm x 13.97mm)
Inductance - Connected In Parallel:
101.4 µH
standardLeadTime:
13 Weeks
Current Rating - Parallel:
700 mA
Mounting Type:
Surface Mount
Series:
OCTA-PAC®
DC Resistance (DCR) - Parallel:
345mOhm Max
Height:
0.190" (4.83mm)
Packaging:
Tape & Reel (TR)
Current Rating - Series:
350 mA
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX100-3-R. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. It consists of 2 coils. The product has -40°c ~ 85°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Features 1.381ohm max DCR. Furthermore, the product is shielded with unshielded. The eaton - electronics division's product offers user-desired applications. While the series connected inductance is 405.6 µh. The product's diameters include 0.550" l x 0.550" w (13.97mm x 13.97mm). It has [Inductance - Connected in Parallel] inductance at parallel connection. It has a long 13 weeks standard lead time. It features 700 ma of parallel current rating. The product is available in surface mount configuration. The product octa-pac®, is a highly preferred choice for users. It has 345mohm max parallel DC resistance. In addition, the height is 0.190" (4.83mm). In addition, tape & reel (tr) is the available packaging type of the product. The series current rated with 350 ma. The product is designated with the ear99 code number.

pdf icon
Multiple Devices 31/Aug/2013(PCN Assembly/Origin)
pdf icon
CTX Series ECONO-PAC, OCTA-PAC/PLUS(Datasheets)
pdf icon
Octa-Pac 27/Sep/2018(PCN Packaging)
pdf icon
Shipping Box and Labels 05/Jan/2018(PCN Packaging)
