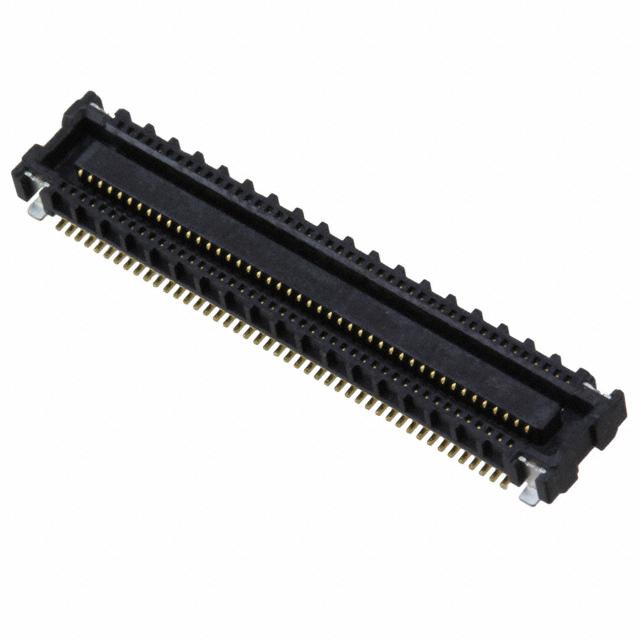

Molex 5009130902

5009130902 Molex
5009130902
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.063" (1.60mm)
Contact Finish Thickness:
8.00µin (0.203µm)
Number of Positions:
90
title:
5009130902
REACH Status:
REACH Unaffected
edacadModel:
5009130902 Models
Number of Rows:
2
edacadModelUrl:
/en/models/3197193
Manufacturer:
Molex
Connector Type:
Receptacle, Center Strip Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
24 Weeks
Features:
Solder Retention
Mounting Type:
Surface Mount
Series:
SlimStack 500913
Packaging:
Tape & Reel (TR)
Mated Stacking Heights:
1.8mm
Pitch:
0.016" (0.40mm)
Base Product Number:
500913
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5009130902. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.063" (1.60mm) high above board. It has 8.00µin (0.203µm) of contact finishing thickness. The product carries possible position value of 90. In addition, it is reach unaffected. It comes in 2 of rows. The molex's product offers user-desired applications. receptacle, center strip contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 24 weeks standard lead time. The splendid features of the product include solder retention. The product is available in surface mount configuration. The product slimstack 500913, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The mated stacking heights of a bespoke product includes 1.8mm. Moreover, the product is 0.016" (0.40mm). Moreover, it corresponds to 500913, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
500913 Series Location 14/Jun/2023(PCN Assembly/Origin)
pdf icon
500913,55909 Series Spec(Datasheets)
pdf icon
500913-0902.pdf(3D Drawings)
pdf icon
500913 Series Drawing(Product Drawings)
