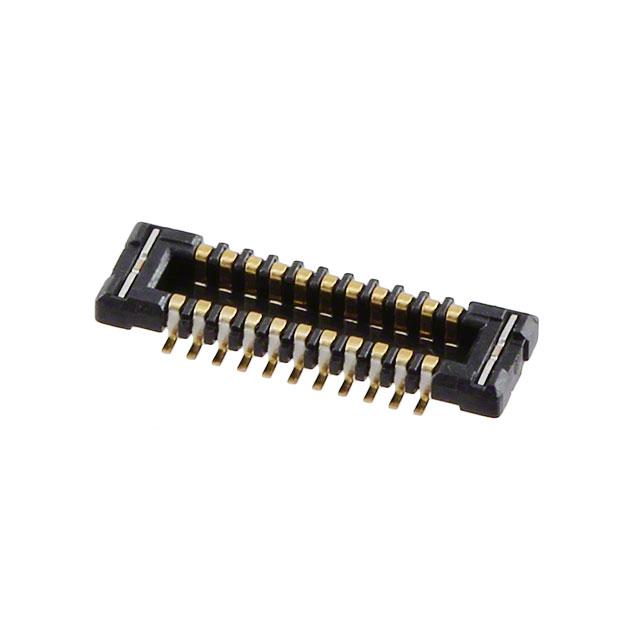

Molex 5015942211

5015942211 Molex
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.028" (0.71mm)
Contact Finish Thickness:
4.00µin (0.100µm)
Number of Positions:
22
REACH Status:
REACH Unaffected
edacadModel:
5015942211 Models
Number of Rows:
2
edacadModelUrl:
/en/models/3197184
Manufacturer:
Molex
Connector Type:
Plug, Outer Shroud Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Solder Retention
Mounting Type:
Surface Mount
Series:
SlimStack 501594
Packaging:
Tape & Reel (TR)
Mated Stacking Heights:
0.9mm
Pitch:
0.016" (0.40mm)
Base Product Number:
501594
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5015942211. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.028" (0.71mm) high above board. It has 4.00µin (0.100µm) of contact finishing thickness. The product carries possible position value of 22. In addition, it is reach unaffected. It comes in 2 of rows. The molex's product offers user-desired applications. plug, outer shroud contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include solder retention. The product is available in surface mount configuration. The product slimstack 501594, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The mated stacking heights of a bespoke product includes 0.9mm. Moreover, the product is 0.016" (0.40mm). Moreover, it corresponds to 501594, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Production 24/Aug/2016(PCN Assembly/Origin)
pdf icon
501591,501594 Series Spec(Datasheets)
pdf icon
501594-2211.pdf(3D Drawings)
pdf icon
501594 Drawing(Product Drawings)
