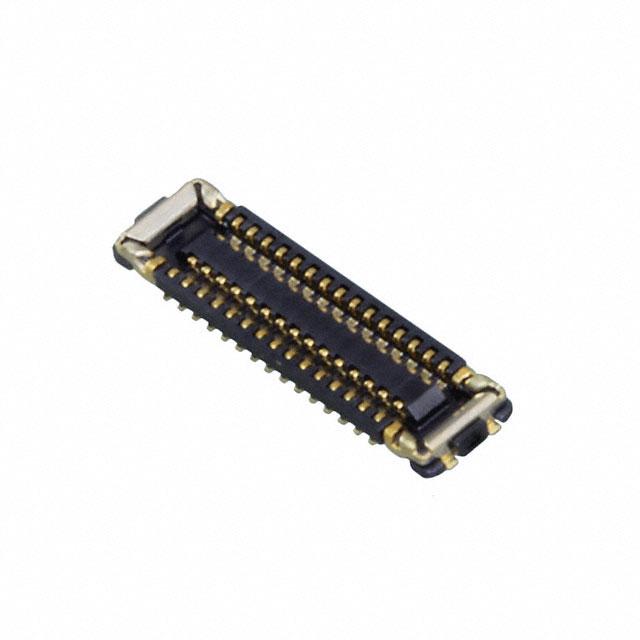

Molex 5050663020

5050663020 Molex
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.022" (0.57mm)
Contact Finish Thickness:
-
Number of Positions:
30
edacadModel:
5050663020 Models
REACH Status:
REACH Unaffected
Number of Rows:
2
edacadModelUrl:
/en/models/5604361
Package:
Tape & Reel (TR)
Connector Type:
Receptacle, Center Strip Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Solder Retention
Mounting Type:
Surface Mount
Series:
SlimStack Armor 505066
Mated Stacking Heights:
0.6mm
Pitch:
0.014" (0.35mm)
Base Product Number:
505066
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5050663020. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.022" (0.57mm) high above board. The product carries possible position value of 30. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in tape & reel (tr) package . receptacle, center strip contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include solder retention. The product is available in surface mount configuration. The product slimstack armor 505066, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 0.6mm. Moreover, the product is 0.014" (0.35mm). Moreover, it corresponds to 505066, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices 22/Jul/2015(PCN Assembly/Origin)
pdf icon
505070,505066 Series 21/Jul/2015(PCN Other)
pdf icon
SlimStack Armor Connectors(Datasheets)
pdf icon
505066 Packaging Spec(Datasheets)
pdf icon
Multiple Devices 18/Sep/2018(PCN Obsolescence/ EOL)
pdf icon
505066-3020.pdf(3D Drawings)
pdf icon
5050663020 Drawing(Product Drawings)
