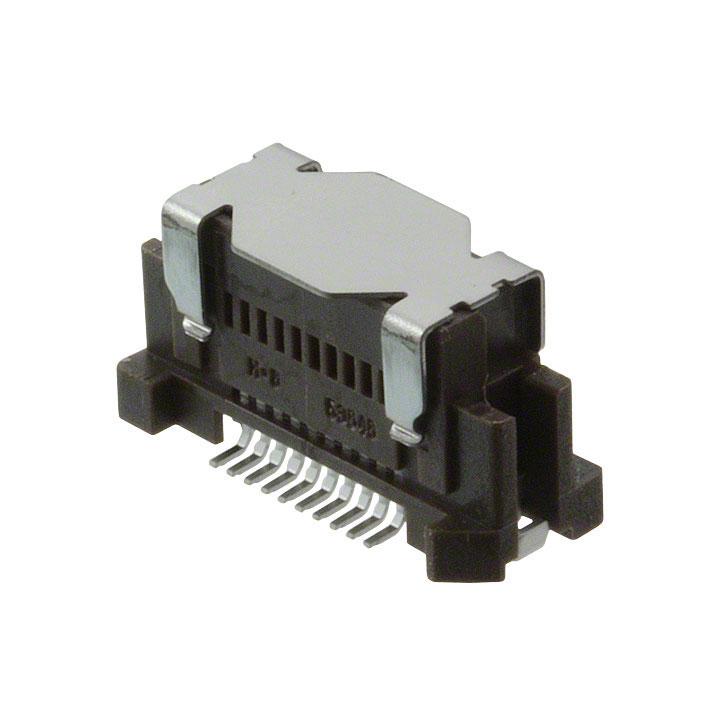

Molex 0536470274

0536470274 Molex
0536470274
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.275" (6.99mm)
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
20
REACH Status:
REACH Unaffected
edacadModel:
0536470274 Models
Number of Rows:
2
edacadModelUrl:
/en/models/3044366
Package:
Tape & Reel (TR)
Connector Type:
Plug, Outer Shroud Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
11 Weeks
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount
Series:
SlimStack 53647
Mated Stacking Heights:
8mm, 14mm
Pitch:
0.025" (0.64mm)
Base Product Number:
053647
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0536470274. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.275" (6.99mm) high above board. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 20. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in tape & reel (tr) package . plug, outer shroud contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 11 weeks standard lead time. The splendid features of the product include board guide, solder retention. The product is available in surface mount configuration. The product slimstack 53647, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 8mm, 14mm. Moreover, the product is 0.025" (0.64mm). Moreover, it corresponds to 053647, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
536470274 RoHS Cert of Compliance(Environmental Information)
pdf icon
Prod Spec(Datasheets)
pdf icon
53647 Series Drawing(Product Drawings)
