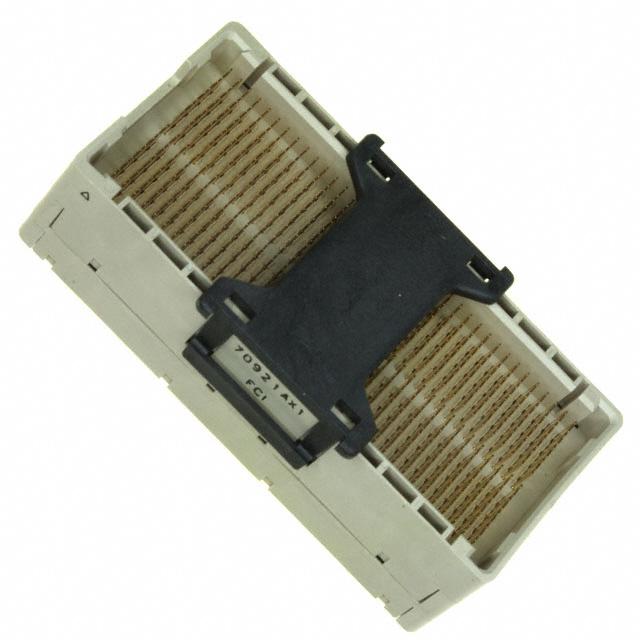

Amphenol ICC (FCI) 55700-001LF

55700-001LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Height Above Board:
0.576" (14.64mm)
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
296 Signal (148 Pair)
edacadModel:
55700-001LF Models
REACH Status:
REACH Affected
Number of Rows:
18
edacadModelUrl:
/en/models/1489650
Package:
Tray
Connector Type:
Differential Pair Array, Male
Contact Finish:
Gold or Gold, GXT™
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Mounting Type:
Surface Mount
Series:
GIG-Array®, MezzSelect™
Mated Stacking Heights:
20mm, 30mm
Pitch:
0.051" (1.30mm)
Base Product Number:
55700
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 55700-001LF. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. It is 0.576" (14.64mm) high above board. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 296 signal (148 pair). In addition, it is reach affected. It comes in 18 of rows. It is shipped in tray package . differential pair array, male Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold or gold, gxt™ contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product gig-array®, mezzselect™, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 20mm, 30mm. Moreover, the product is 0.051" (1.30mm). Moreover, it corresponds to 55700, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
GIG-Array Connectors 15/Jan/2013(PCN Assembly/Origin)
pdf icon
GIG-Array Plating 15/Mar/2011(PCN Design/Specification)
pdf icon
GIG Array Marerial 15/Feb/2012(PCN Design/Specification)
pdf icon
55700-z01(LF) Drawing(Product Drawings)
