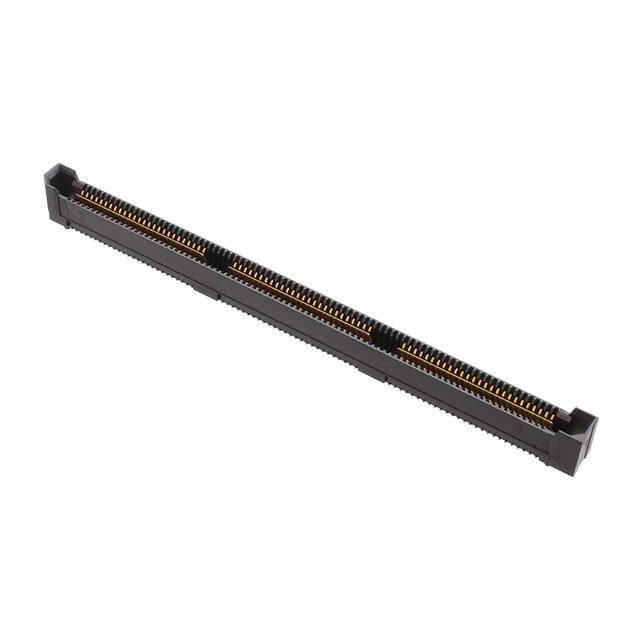

Samtec Inc. QRF8-078-05.0-L-D-A-GP

QRF8-078-05-0-L-D-A-GP Samtec Inc. QRF8-078-05.0-L-D-A-GP
QRF8-078-05.0-L-D-A-GP
Samtec Inc.

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.197" (5.00mm)
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
156
REACH Status:
REACH Unaffected
edacadModel:
QRF8-078-05.0-L-D-A-GP Models
Number of Rows:
2
edacadModelUrl:
/en/models/6678516
Manufacturer:
Samtec Inc.
Connector Type:
Array, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
6 Weeks
Features:
Board Guide, Ground Bus (Plane)
Mounting Type:
Surface Mount
Series:
QRate® QRF8
Packaging:
Tray
Mated Stacking Heights:
7mm, 10mm, 12mm
Pitch:
0.031" (0.80mm)
Base Product Number:
QRF8-078
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is QRF8-078-05.0-L-D-A-GP. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.197" (5.00mm) high above board. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 156. In addition, it is reach unaffected. It comes in 2 of rows. The samtec inc.'s product offers user-desired applications. array, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The splendid features of the product include board guide, ground bus (plane). The product is available in surface mount configuration. The product qrate® qrf8, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The mated stacking heights of a bespoke product includes 7mm, 10mm, 12mm. Moreover, the product is 0.031" (0.80mm). Moreover, it corresponds to qrf8-078, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Socket Strip, Differential Pair(Datasheets)
pdf icon
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Socket Strip, Differential Pair(Other Related Documents)
pdf icon
QRF8 Series Other Related Documents 03(Other Related Documents)
pdf icon
QRF8-yyy-0y.0-y-D-(DP)-(A)(-yy) Drawing(Product Drawings)
