Samtec Inc. ERF5-060-05.0-L-DV-K-TR

Enrgtech Part No: ET13371982
|
Manufacturer Part No:
ERF5-060-05.0-L-DV-K-TR
|
Manufacturer: Samtec Inc.

ERF5-060-05-0-L-DV-K-TR Samtec Inc. ERF5-060-05.0-L-DV-K-TR

Product Information

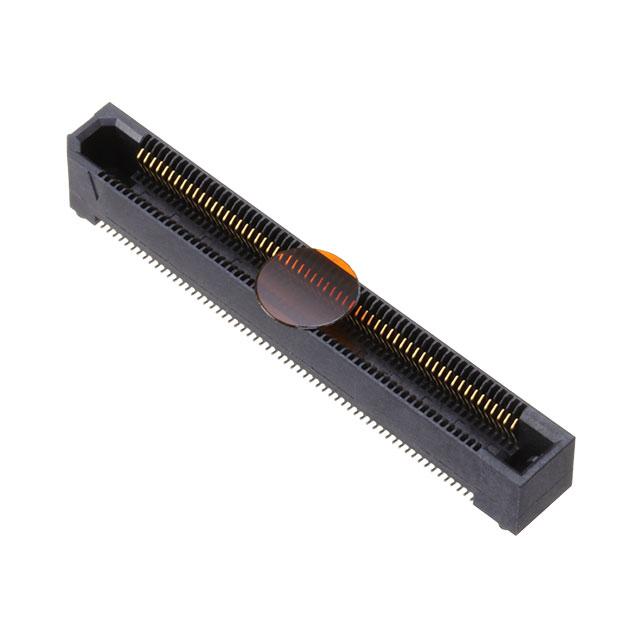

The Samtec Inc. ERF5-060-05.0-L-DV-K-TR is a refined surface-mount socket connector with 120 gold-plated contacts designed to deliver reliable and efficient electrical connections for complex PCB applications. This connector ensures easy integration into high-density electronic equipment.

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Height Above Board:

0.193" (4.90mm)

Contact Finish Thickness:

10.0µin (0.25µm)

Number of Positions:

120

REACH Status:

REACH Unaffected

edacadModel:

ERF5-060-05.0-L-DV-K-TR Models

Number of Rows:

edacadModelUrl:

/en/models/6694783

Manufacturer:

Samtec Inc.

Connector Type:

Socket, Center Strip Contacts

Contact Finish:

Gold

Checking for live stock

The ERF5-060-05.0-L-DV-K-TR is a board-to-board and mezzanine rectangular connector socket manufactured by Samtec Inc., a leading electronic interconnect solutions provider. This connector offers reliable and efficient connectivity for various electronic applications. It is a versatile board-to-board and mezzanine rectangular connector socket with center strip contacts. With its high-density configuration, compact pitch size, and dual-row arrangement, this connector offers reliable and efficient connectivity for electronic systems.

Product Specifications:

The ERF5-060-05.0-L-DV-K-TR connector also comes with specific specifications. These specifications include the following:

Voltage Rating: The connector has a voltage rating suitable for typical electronic systems.
Current Rating: The ERF5-060-05.0-L-DV-K-TR connector can handle a specific current range, ensuring reliable power transmission between connected boards.
Operating Temperature Range: The connector operates within a specific temperature range, providing optimal performance under various environmental conditions.
Mating Cycle Durability: The connector is designed to withstand several mating cycles, ensuring long-term durability and reliability in repeated connection and disconnection processes.

Key Features of ERF5-060-05.0-L-DV-K-TR, Samtec Inc. Board to Board & Mezzanine Rectangular Connector:

The ERF5-060-05.0-L-DV-K-TR connector boasts several notable features that make it suitable for various applications. Some of its key features include:

Center Strip Contacts: This connector utilizes center strip contacts, which provide secure and stable electrical connections between the boards. These contacts ensure reliable signal transmission and minimize the risk of signal loss or interference.
Number of Positions: The ERF5-060-05.0-L-DV-K-TR connector is designed with 120 positions. This high-density configuration allows for the transmission of multiple signals, enabling complex electronic systems to communicate effectively.
Pitch: The connector has a pitch of 0.020" (0.50mm), which refers to the distance between adjacent contacts. The compact pitch size enables space-saving designs and facilitates high-density packaging of electronic components.
Number of Rows: The ERF5-060-05.0-L-DV-K-TR connector features two rows of contacts. This dual-row arrangement enhances the connector's stability and improves its ability to handle higher currents and signal integrity.

ERF5 Datasheet(Datasheets)

ERF5 Series Datasheet(Datasheets)

ERF5 Series Other Related Documents 03(Other Related Documents)

ERF5 Series Other Related Documents 01(Other Related Documents)
