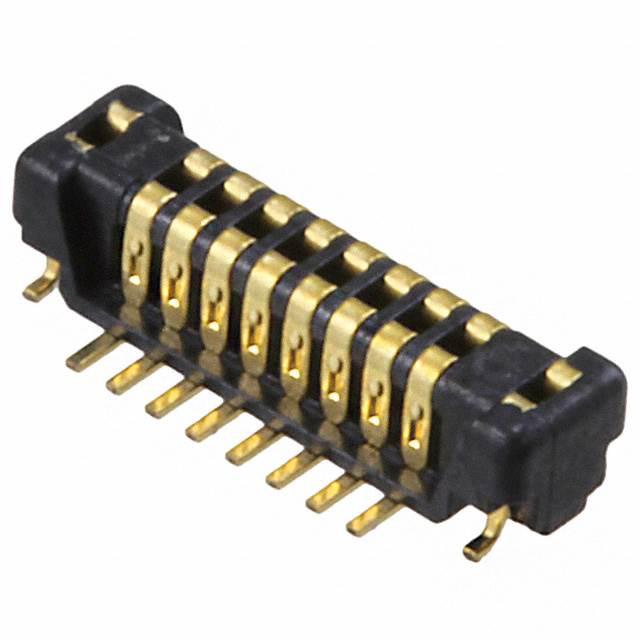

Panasonic Electric Works AXT416114

AXT416114 Panasonic Electric Works
Panasonic Electric Works

Product Information

HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Height Above Board:
0.049" (1.25mm)
Contact Finish Thickness:
-
Number of Positions:
16
Number of Rows:
2
Package:
Tape & Reel (TR)
Connector Type:
Header, Center Strip Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount
Series:
P4S
Mated Stacking Heights:
1.5mm, 2.5mm
Pitch:
0.016" (0.40mm)
Base Product Number:
AXT416
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is AXT416114. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. It is 0.049" (1.25mm) high above board. The product carries possible position value of 16. It comes in 2 of rows. It is shipped in tape & reel (tr) package . header, center strip contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include board guide, solder retention. The product is available in surface mount configuration. The product p4s, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 1.5mm, 2.5mm. Moreover, the product is 0.016" (0.40mm). Moreover, it corresponds to axt416, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Discontinued 30/SEP/2016(PCN Obsolescence/ EOL)
pdf icon
P4S Series Datasheet(Datasheets)
pdf icon
How to Read Date Codes(Other Related Documents)
pdf icon
Connectors SMD-Technical Info(Other Related Documents)
pdf icon
P4S SERIES 12/Dec/2017(PCN Design/Specification)
