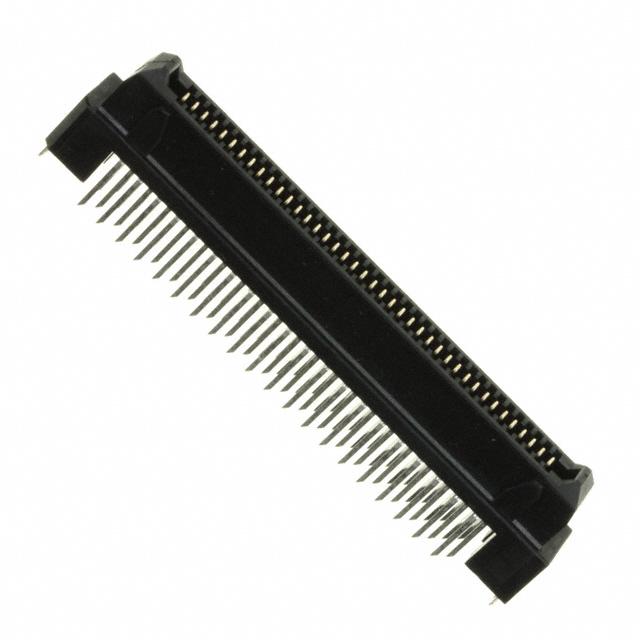

JAE Electronics TX24-80R-10ST-E1E

TX24-80R-10ST-E1E JAE Electronics
JAE Electronics

Product Information

HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Height Above Board:
0.563" (14.30mm)
Contact Finish Thickness:
4.00µin (0.100µm)
Number of Positions:
80
Number of Rows:
2
Package:
Tray
Connector Type:
Receptacle, Outer Shroud Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Board Lock
Mounting Type:
Through Hole
Series:
TX24
Mated Stacking Heights:
16mm, 18mm, 22mm
Pitch:
0.050" (1.27mm)
Base Product Number:
TX24-80R
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is TX24-80R-10ST-E1E. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. It is 0.563" (14.30mm) high above board. It has 4.00µin (0.100µm) of contact finishing thickness. The product carries possible position value of 80. It comes in 2 of rows. It is shipped in tray package . receptacle, outer shroud contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include board lock. The product is available in through hole configuration. The product tx24, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 16mm, 18mm, 22mm. Moreover, the product is 0.050" (1.27mm). Moreover, it corresponds to tx24-80r, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs - End of Life 08/FEB/2021(PCN Obsolescence/ EOL)
pdf icon
Board-To-Board Connectors(Datasheets)
