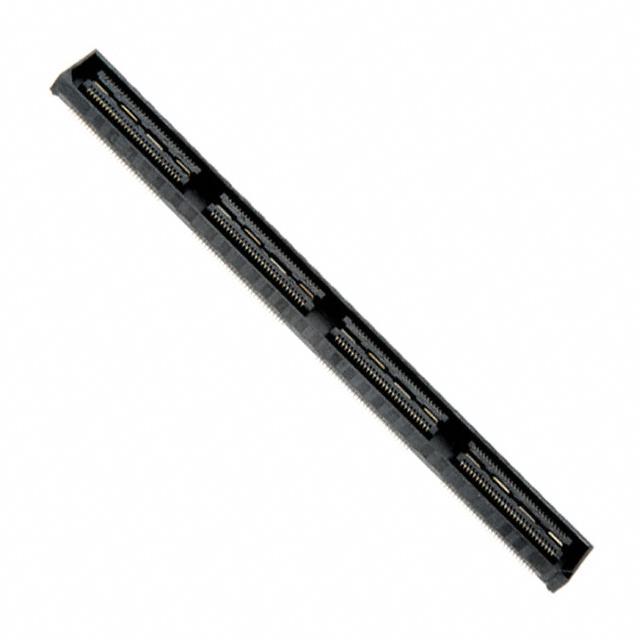

Samtec Inc. QSH-120-01-L-D-A

Enrgtech Part No: ET11746644
|
Manufacturer Part No:
QSH-120-01-L-D-A
|
Manufacturer: Samtec Inc.

Product Information

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Height Above Board:

0.128" (3.25mm)

Contact Finish Thickness:

10.0µin (0.25µm)

Number of Positions:

240

REACH Status:

REACH Unaffected

edacadModel:

QSH-120-01-L-D-A Models

Number of Rows:

edacadModelUrl:

/en/models/1106527

Manufacturer:

Samtec Inc.

Connector Type:

Receptacle, Center Strip Contacts

Contact Finish:

Gold

Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is QSH-120-01-L-D-A. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.128" (3.25mm) high above board. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 240. In addition, it is reach unaffected. It comes in 2 of rows. The samtec inc.'s product offers user-desired applications. receptacle, center strip contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The splendid features of the product include board guide, ground bus (plane). The product is available in surface mount configuration. The product q strip® qsh, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The mated stacking heights of a bespoke product includes 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm. Moreover, the product is 0.020" (0.50mm). Moreover, it corresponds to qsh-120, a base product number of the product. The product is designated with the ear99 code number.

QSH Series Datasheet 02(HTML Datasheet)

QTH-030-01-C-D-EM2 Test Report(Reliability Documents)

QSH-020-01-C-D-DP-A Datasheet 02(Datasheets)

0.50 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair(Datasheets)

0.50 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair(Other Related Documents)

QSH Series Other Related Documents 03(Other Related Documents)

QSH-yyy-01-y-D-yyy Drawing(Product Drawings)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search QSH-120-01-L-D-A on website for other similar products.

We accept all major payment methods for all products including ET11746644. Please check your shopping cart at the time of order.

You can order Samtec Inc. brand products with QSH-120-01-L-D-A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Arrays, Edge Type, Mezzanine (Board to Board) category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Samtec Inc. QSH-120-01-L-D-A. You can also check on our website or by contacting our customer support team for further order details on Samtec Inc. QSH-120-01-L-D-A.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET11746644 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Samtec Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11746644.

Yes. We ship QSH-120-01-L-D-A Internationally to many countries around the world.
