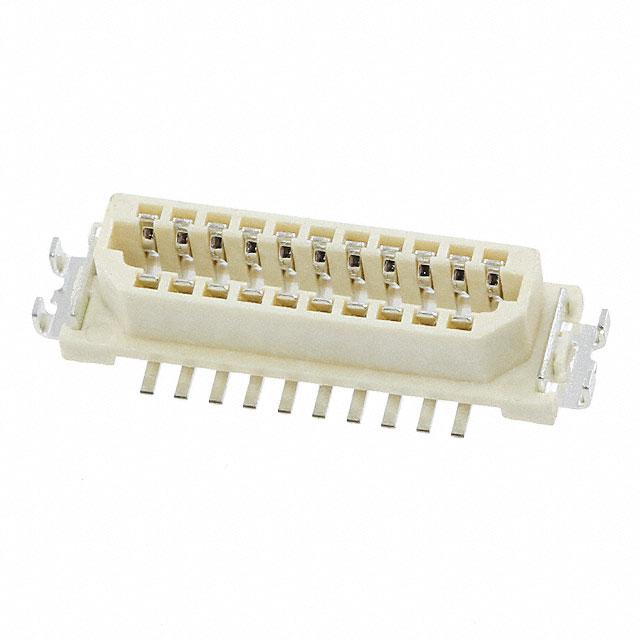

Harwin Inc. M40-6202146

M40-6202146 Harwin Inc.
Harwin Inc.

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.130" (3.30mm)
Contact Finish Thickness:
80.0µin (2.03µm)
Number of Positions:
21
REACH Status:
REACH Unaffected
Number of Rows:
2
Package:
Tube
Connector Type:
Receptacle, Outer Shroud Contacts
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount
Series:
M40
Mated Stacking Heights:
4.3mm
Pitch:
0.039" (1.00mm)
Base Product Number:
M40-620
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M40-6202146. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.130" (3.30mm) high above board. It has 80.0µin (2.03µm) of contact finishing thickness. The product carries possible position value of 21. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in tube package . receptacle, outer shroud contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include board guide, solder retention. The product is available in surface mount configuration. The product m40, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 4.3mm. Moreover, the product is 0.039" (1.00mm). Moreover, it corresponds to m40-620, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Harwin REACH(Environmental Information)
pdf icon
M40-620yy46 21/Oct/2022(PCN Obsolescence/ EOL)
pdf icon
Obsolete 21/OCT/2022(PCN Obsolescence/ EOL)
pdf icon
M40 Series Connectors Spec Sheet(Design Resources)
pdf icon
M40-620 Drawing(Product Drawings)
