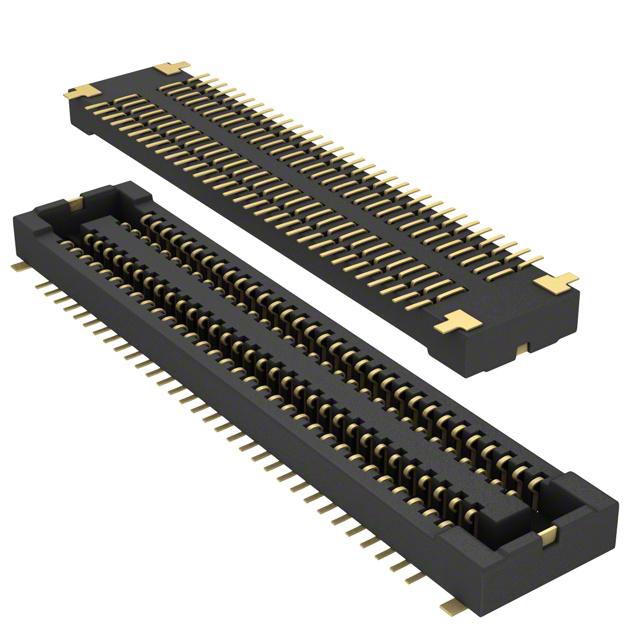

Panasonic Electric Works AXT564124

AXT564124 Panasonic Electric Works
Panasonic Electric Works

Product Information

HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Height Above Board:
0.038" (0.97mm)
Contact Finish Thickness:
-
Number of Positions:
64
Number of Rows:
2
Package:
Tape & Reel (TR)
Connector Type:
Socket, Outer Shroud Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Solder Retention
Mounting Type:
Surface Mount
Series:
F4S
Mated Stacking Heights:
1mm
Pitch:
0.016" (0.40mm)
Base Product Number:
AXT564
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is AXT564124. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. It is 0.038" (0.97mm) high above board. The product carries possible position value of 64. It comes in 2 of rows. It is shipped in tape & reel (tr) package . socket, outer shroud contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include solder retention. The product is available in surface mount configuration. The product f4s, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 1mm. Moreover, the product is 0.016" (0.40mm). Moreover, it corresponds to axt564, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Dev EOL 17/Jun/2019(PCN Obsolescence/ EOL)
pdf icon
AXT5/6 (F4S Series)(Datasheets)
pdf icon
Mult Dev NRND 7/Dec/2018(PCN Part Status Change)
pdf icon
How to Read Date Codes(Other Related Documents)
pdf icon
Connectors SMD-Technical Info(Other Related Documents)
