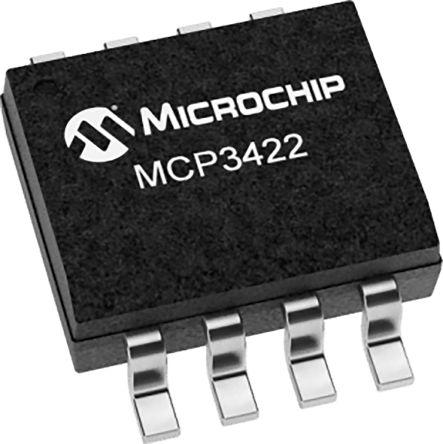

Microchip Technology MCP3422A1-E/SN, 18 bit Serial ADC Differential Input, 8-Pin SOIC

MCP3422A1-E-SN Microchip Technology MCP3422A1-E/SN, 18 bit Serial ADC Differential Input, 8-Pin SOIC
Microchip

Product Information

Number of ADCs:
2
Integral Nonlinearity Error:
35ppm FSR
Dimensions:
4.9 x 3.9 x 1.5mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (I2C)
Input Signal Type:
Differential
Typical Single Supply Voltage:
3 V
Package Type:
SOIC
Architecture:
Delta Sigma
Input Type:
Single Ended
Sampling Rate:
3.75sps
Maximum Operating Temperature:
125 °C
Resolution:
18 bit
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Technology 18 bit Serial ADC Differential Input 8-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP3422A1-E/SN. It contains 2 ADCs . Its integral nonlinearity error is 35ppm fsr . The given dimensions of the product include 4.9 x 3.9 x 1.5mm. The product is available in surface mount configuration. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (i2c) type digital interface . The input signal is a kind of differential signal. It has a typical single supply voltage of 3 v. The package is a sort of soic. The product has been designed as delta sigma. It carries single ended input type. It has about 3.75sps sampling rate . It has a maximum operating temperature of 125 °c. Features 18 bit resolution. It contains 8 pins.
