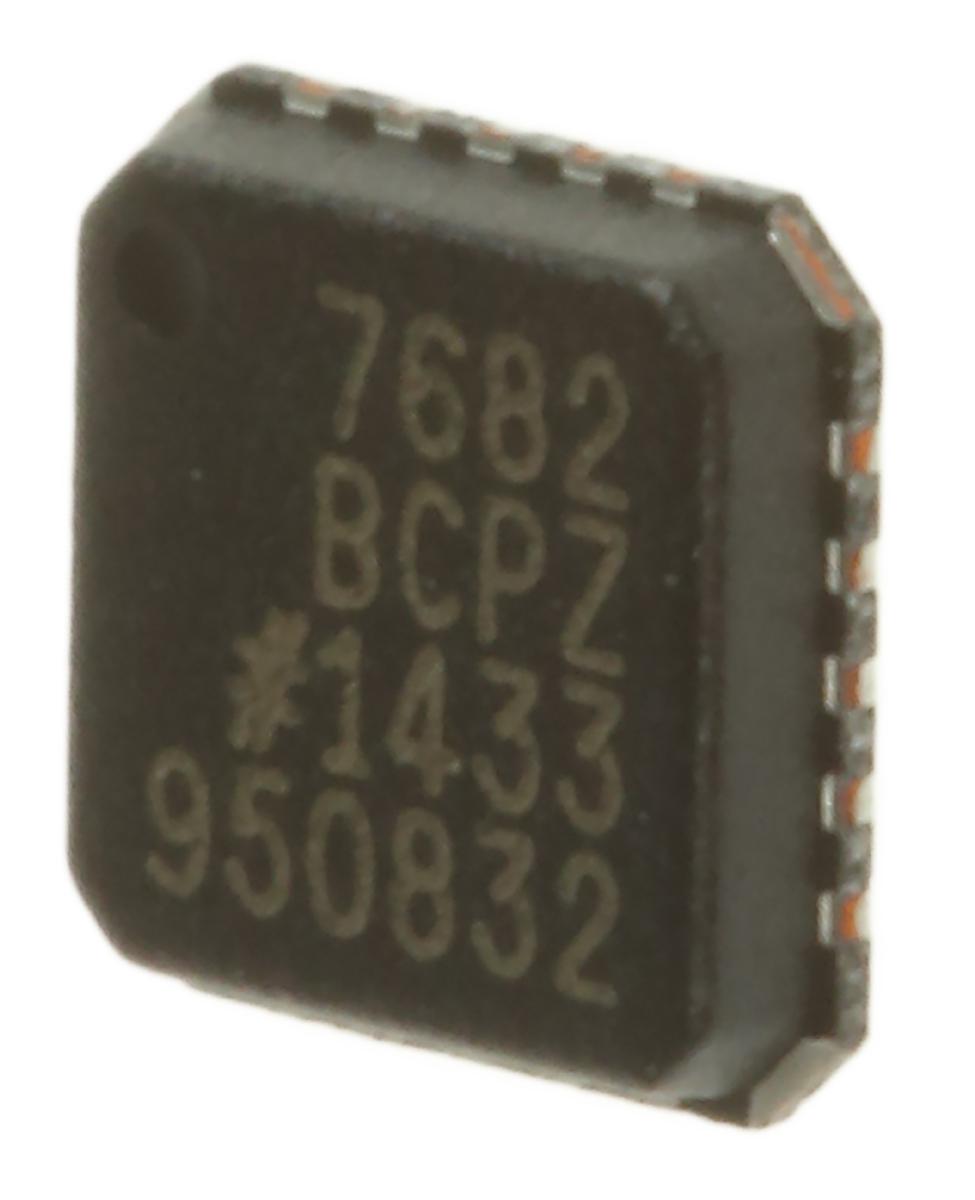

Analog Devices AD7682BCPZ, 16-Bit Serial ADC Differential, Pseudo Differential, Single Ended Input, 20-Pin LFCSP

AD7682BCPZ Analog Devices , 16-Bit Serial ADC Differential, Pseudo Differential, Single Ended Input, 20-Pin LFCSP
Analog Devices

Product Information

Number of ADCs:
4
Integral Nonlinearity Error:
±1.5LSB
Dimensions:
4 x 4 x 0.83mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
85 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI/QSPI/Microwire)
Input Signal Type:
Differential, Pseudo Differential, Single Ended
Typical Single Supply Voltage:
2.5 V, 3.3 V, 5 V
Package Type:
LFCSP
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
250ksps
Resolution:
16-bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is 16-Bit Serial ADC Differential Pseudo Differential Single Ended Input 20-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is AD7682BCPZ. It contains 4 ADCs . Its integral nonlinearity error is ±1.5lsb . The given dimensions of the product include 4 x 4 x 0.83mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . The input signal is a kind of differential, pseudo differential, single ended signal. It has a typical single supply voltage of 2.5 v, 3.3 v, 5 v. The package is a sort of lfcsp. The product has been designed as sar. It carries voltage input type. It has about 250ksps sampling rate . Features 16-bit resolution. It contains 20 pins.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AD7682/AD7689, 16-Bit, 4-Channel/8-Channel, 250kSPS PulSAR ADC(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD7682BCPZ on website for other similar products.
We accept all major payment methods for all products including ET16916744. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD7682BCPZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue to Digital Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD7682BCPZ, 16-Bit Serial ADC Differential, Pseudo Differential, Single Ended Input, 20-Pin LFCSP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD7682BCPZ, 16-Bit Serial ADC Differential, Pseudo Differential, Single Ended Input, 20-Pin LFCSP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16916744 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16916744.
Yes. We ship AD7682BCPZ Internationally to many countries around the world.
