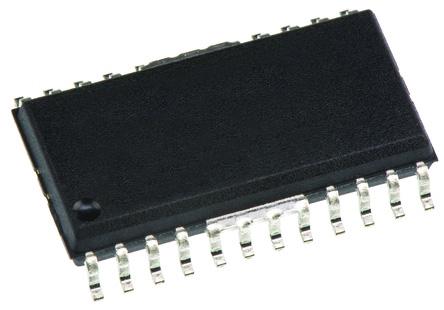

Analog Devices AD7853ARZ, 12-bit Serial ADC Pseudo Differential Input, 24-Pin SOIC

Enrgtech Part No: ET16827118
|
Manufacturer Part No:
AD7853ARZ
|
Manufacturer: Analog Devices

AD7853ARZ Analog Devices , 12-bit Serial ADC Pseudo Differential Input, 24-Pin SOIC

Product Information

Number of ADCs:

Integral Nonlinearity Error:

±1LSB

Dimensions:

15.45 x 7.6 x 2.186mm

Mounting Type:

Surface Mount

Power Supply Type:

Single

Minimum Operating Temperature:

-40 °C

Digital Interface Type:

Serial (SPI/QSPI/Microwire)

Input Signal Type:

Pseudo Differential

Typical Single Supply Voltage:

3 to 5.5 V

Package Type:

SOIC

Architecture:

SAR

Input Type:

Voltage

Checking for live stock

This is 12-bit Serial ADC Pseudo Differential Input 24-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD7853ARZ. It contains 1 ADCs . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 15.45 x 7.6 x 2.186mm. The product is available in surface mount configuration. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . The input signal is a kind of pseudo differential signal. It has a typical single supply voltage of 3 to 5.5 v. The package is a sort of soic. The product has been designed as sar. It carries voltage input type. It has about 200ksps sampling rate . It has a maximum operating temperature of 85 °c. Features 12-bit resolution. It contains 24 pins.
