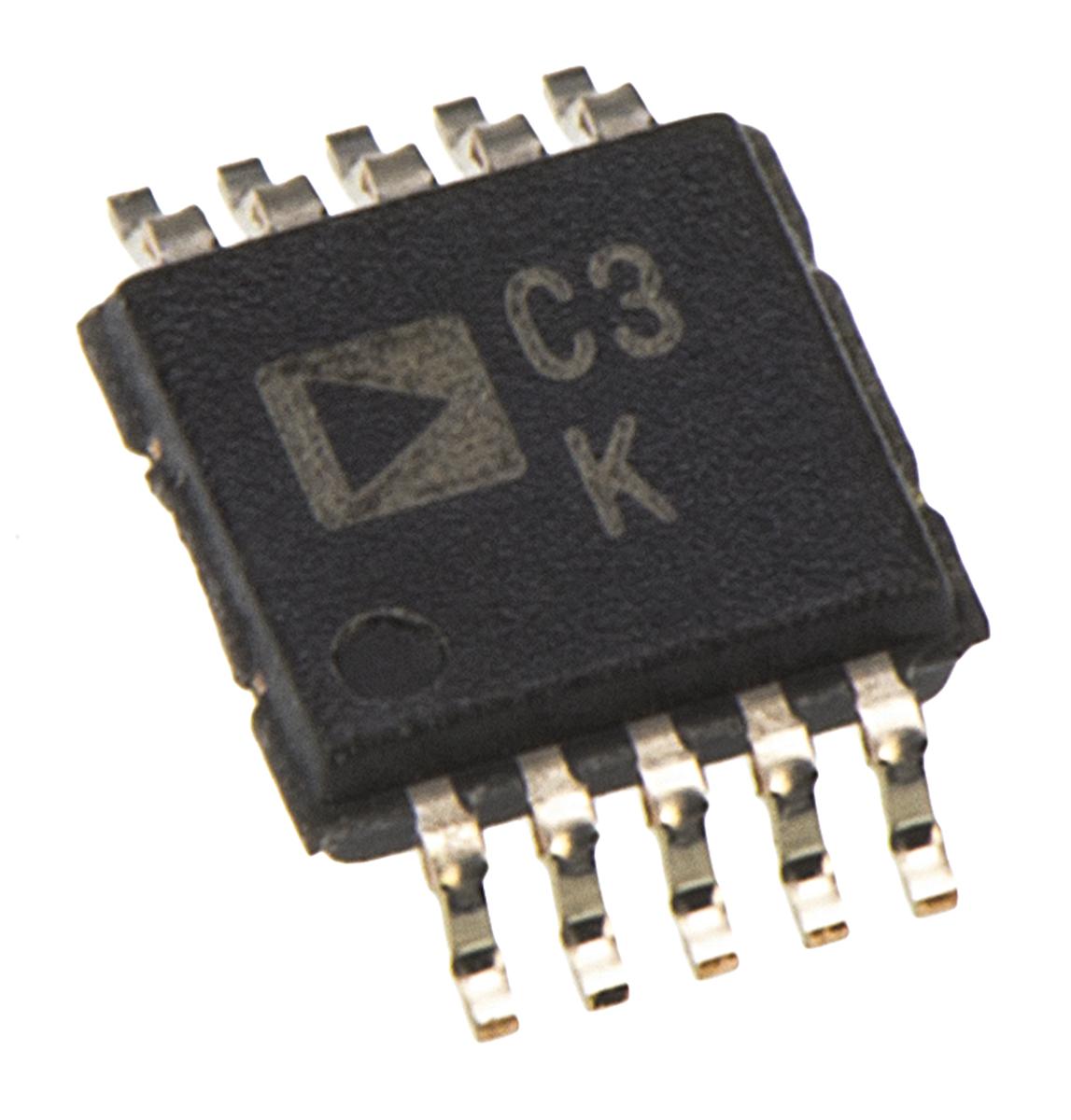

Analog Devices AD7688BRMZ, 16-Bit Serial ADC Differential Input, 10-Pin MSOP

AD7688BRMZ Analog Devices , 16-Bit Serial ADC Differential Input, 10-Pin MSOP
AD7688BRMZ
Analog Devices

Product Information

Number of ADCs:
1
Integral Nonlinearity Error:
±1.5LSB
Dimensions:
3 x 3 x 0.85mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
85 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI/QSPI/Microwire)
Input Signal Type:
Differential
Typical Single Supply Voltage:
5 V
Package Type:
MSOP
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
500ksps
Resolution:
16-bit
Pin Count:
10
RoHs Compliant
Checking for live stock

This is 16-Bit Serial ADC Differential Input 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD7688BRMZ. It contains 1 ADCs . Its integral nonlinearity error is ±1.5lsb . The given dimensions of the product include 3 x 3 x 0.85mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . The input signal is a kind of differential signal. It has a typical single supply voltage of 5 v. The package is a sort of msop. The product has been designed as sar. It carries voltage input type. It has about 500ksps sampling rate . Features 16-bit resolution. It contains 10 pins.
