Microchip MCP3202-CI/SN, 12-bit Serial ADC Pseudo Differential, Single Ended Input, 8-Pin SOIC

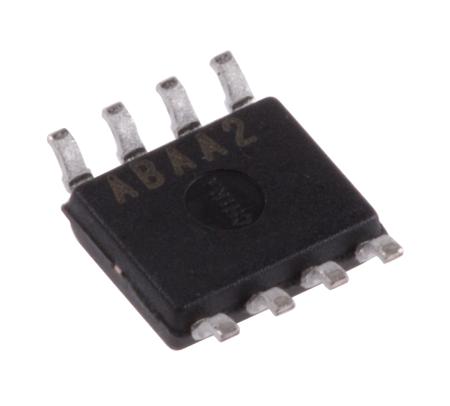

MCP3202-CI-SN Microchip MCP3202-CI/SN, 12-bit Serial ADC Pseudo Differential, Single Ended Input, 8-Pin SOIC
MCP3202-CI/SN
Microchip

Product Information

Number of ADCs:
2
Integral Nonlinearity Error:
±2LSB
Dimensions:
4.9 x 3.9 x 1.25mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
85 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI)
Input Signal Type:
Pseudo Differential, Single Ended
Typical Single Supply Voltage:
3.3 V, 5 V
Package Type:
SOIC
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
100ksps
Resolution:
12-bit
Pin Count:
8
RoHs Compliant
Checking for live stock

This is 12-bit Serial ADC Pseudo Differential Single Ended Input 8-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP3202-CI/SN. It contains 2 ADCs . Its integral nonlinearity error is ±2lsb . The given dimensions of the product include 4.9 x 3.9 x 1.25mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi) type digital interface . The input signal is a kind of pseudo differential, single ended signal. It has a typical single supply voltage of 3.3 v, 5 v. The package is a sort of soic. The product has been designed as sar. It carries voltage input type. It has about 100ksps sampling rate . Features 12-bit resolution. It contains 8 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
MCP3202 Datasheet(Technical Reference)
