Name: AD7914BRUZ, Analog Devices
Brand: Analog Devices
SKU: ET14156658
Price: 7.34 GBP
Availability: InStock

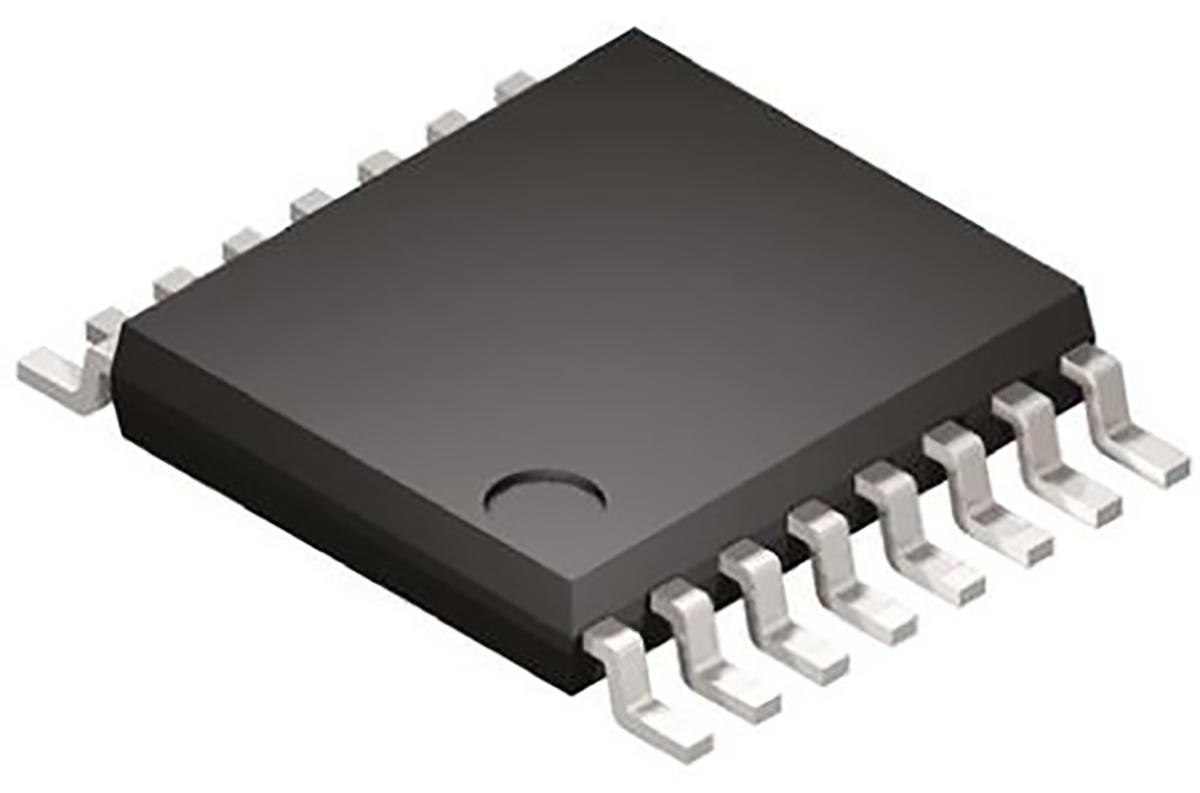

AD7914BRUZ Analog Devices , 10 bit Serial ADC, 16-Pin TSSOP

(0)

Product Information

Number of ADCs:

Integral Nonlinearity Error:

±0.5LSB

Dimensions:

5 x 4.4 x 1.05mm

Mounting Type:

Surface Mount

Maximum Operating Temperature:

85 °C

Minimum Operating Temperature:

-40 °C

Digital Interface Type:

Serial (SPI/QSPI/Microwire)

Input Signal Type:

Single Ended

Typical Single Supply Voltage:

3 V, 5 V

Package Type:

TSSOP

Architecture:

SAR

Input Type:

Voltage

Checking for live stock

This is 10 bit Serial ADC 16-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD7914BRUZ. It contains 4 ADCs . Its integral nonlinearity error is ±0.5lsb . The given dimensions of the product include 5 x 4.4 x 1.05mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . The input signal is a kind of single ended signal. It has a typical single supply voltage of 3 v, 5 v. The package is a sort of tssop. The product has been designed as sar. It carries voltage input type. It has about 1000ksps sampling rate . Features 10-bit resolution. It contains 16 pins.

AD7904/AD7914/AD7924 4-Channel, 1 MSPS, 8-/10-/12-Bit ADCs with Sequencer in 16-Lead TSSOP Data Sheet(Technical Reference)

AD7904/AD7914/AD7924, 4-Channel, 1MSPS, 8-/10-/12-Bit ADCs with Sequencer in 16-Lead TSSOP(Technical Reference)

Designing Power Supplies for High Speed ADC(Technical Reference)
