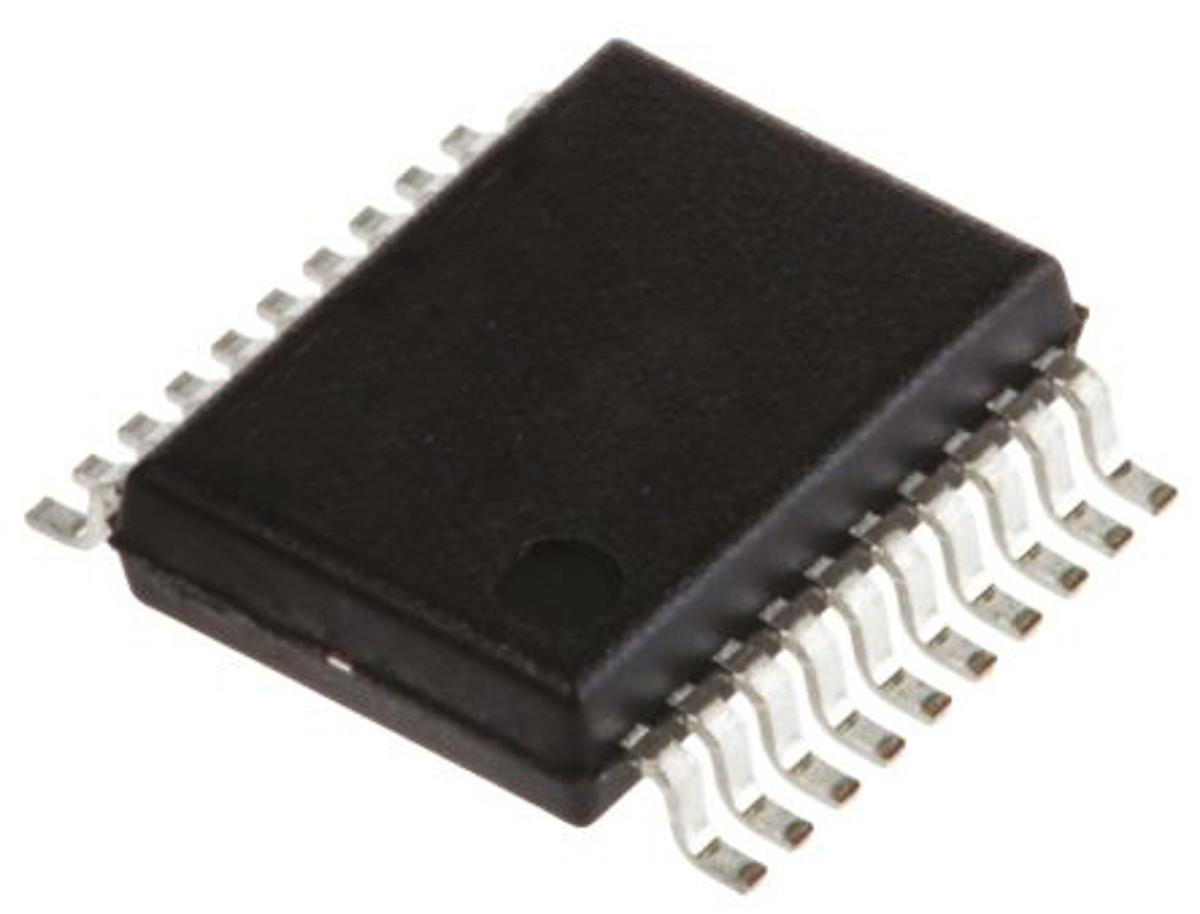

Analog Devices AD9283BRSZ-100, 8 bit Parallel ADC Differential, Single Ended Input, 20-Pin SSOP

AD9283BRSZ-100 Analog Devices , 8 bit Parallel ADC Differential, Single Ended Input, 20-Pin SSOP
Analog Devices

Product Information

Number of ADCs:
1
Integral Nonlinearity Error:
±1.5LSB
Dimensions:
7.5 x 5.38 x 1.78mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Parallel
Input Signal Type:
Differential, Single Ended
Typical Single Supply Voltage:
2.7 to 3.6 V
Package Type:
SSOP
Architecture:
Pipelined
Input Type:
Differential, Single Ended
Sampling Rate:
100Msps
Maximum Operating Temperature:
85 °C
Resolution:
8 bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is 8 bit Parallel ADC Differential Single Ended Input 20-Pin SSOP manufactured by Analog Devices. The manufacturer part number is AD9283BRSZ-100. It contains 1 ADCs . Its integral nonlinearity error is ±1.5lsb . The given dimensions of the product include 7.5 x 5.38 x 1.78mm. The product is available in surface mount configuration. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an parallel type digital interface . The input signal is a kind of differential, single ended signal. It has a typical single supply voltage of 2.7 to 3.6 v. The package is a sort of ssop. The product has been designed as pipelined. It carries differential, single ended input type. It has about 100msps sampling rate . It has a maximum operating temperature of 85 °c. Features 8 bit resolution. It contains 20 pins.

pdf icon
Datasheet AD9283BRSZ-100(Technical Reference)

Reviews

  • Be the first to review.


FAQs

Yes. You can also search AD9283BRSZ-100 on website for other similar products.
We accept all major payment methods for all products including ET14102284. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD9283BRSZ-100 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue to Digital Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD9283BRSZ-100, 8 bit Parallel ADC Differential, Single Ended Input, 20-Pin SSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD9283BRSZ-100, 8 bit Parallel ADC Differential, Single Ended Input, 20-Pin SSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14102284 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14102284.
Yes. We ship AD9283BRSZ-100 Internationally to many countries around the world.
