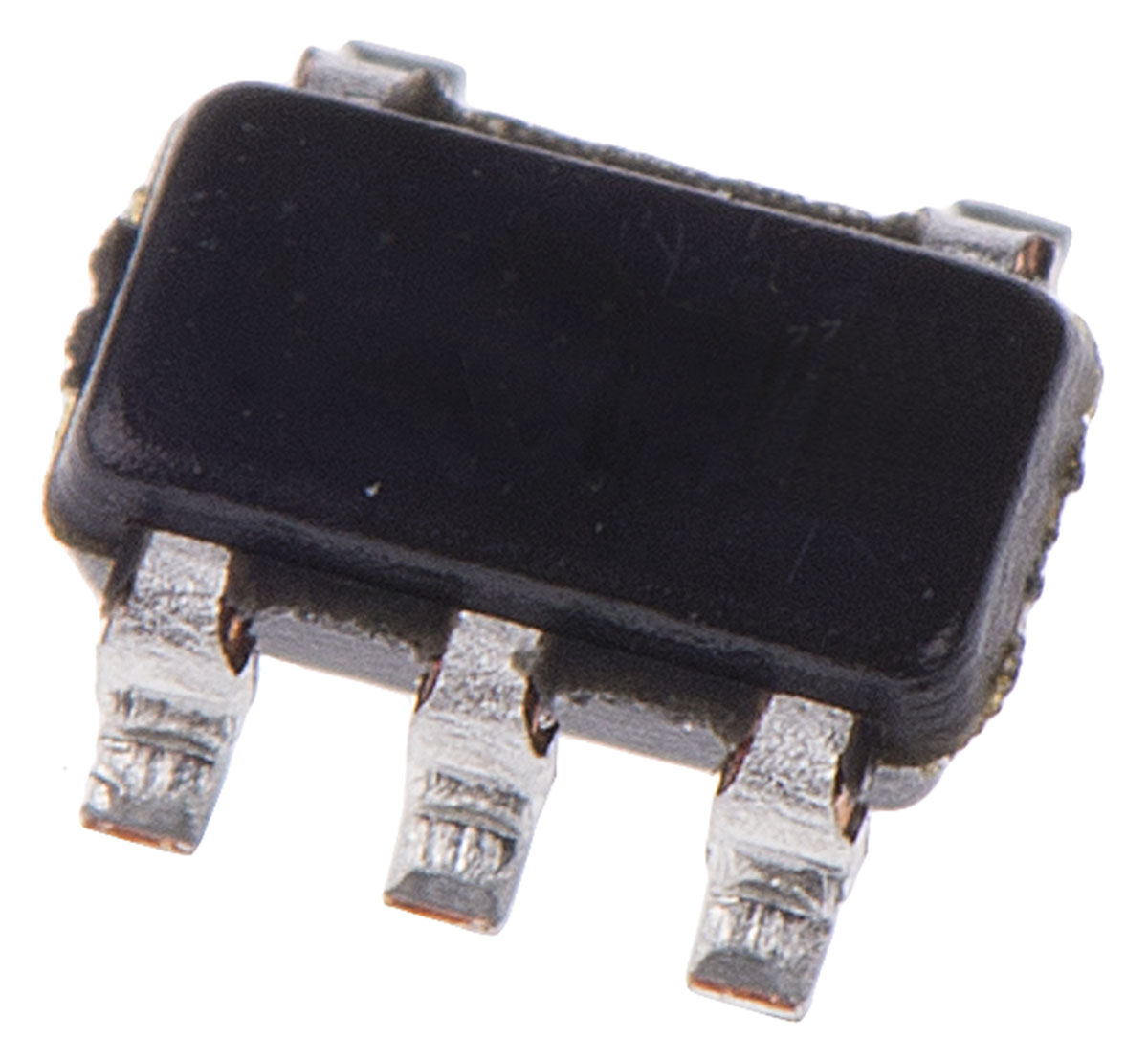

Microchip MCP3221A5T-I/OT, 12-bit Serial ADC, 23-Pin SOT-23

MCP3221A5T-I-OT Microchip MCP3221A5T-I/OT, 12-bit Serial ADC, 23-Pin SOT-23
Microchip

Product Information

Number of ADCs:
1
Integral Nonlinearity Error:
±2LSB
Dimensions:
3.1 x 1.75 x 1.3mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (I2C)
Input Signal Type:
Single Ended
Typical Single Supply Voltage:
2.7 to 5.5 V
Package Type:
SOT-23
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
22.3ksps
Maximum Operating Temperature:
85 °C
Resolution:
12-bit
Pin Count:
23
RoHs Compliant
Checking for live stock

This is 12-bit Serial ADC 23-Pin SOT-23 manufactured by Microchip. The manufacturer part number is MCP3221A5T-I/OT. It contains 1 ADCs . Its integral nonlinearity error is ±2lsb . The given dimensions of the product include 3.1 x 1.75 x 1.3mm. The product is available in surface mount configuration. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (i2c) type digital interface . The input signal is a kind of single ended signal. It has a typical single supply voltage of 2.7 to 5.5 v. The package is a sort of sot-23. The product has been designed as sar. It carries voltage input type. It has about 22.3ksps sampling rate . It has a maximum operating temperature of 85 °c. Features 12-bit resolution. It contains 23 pins.
