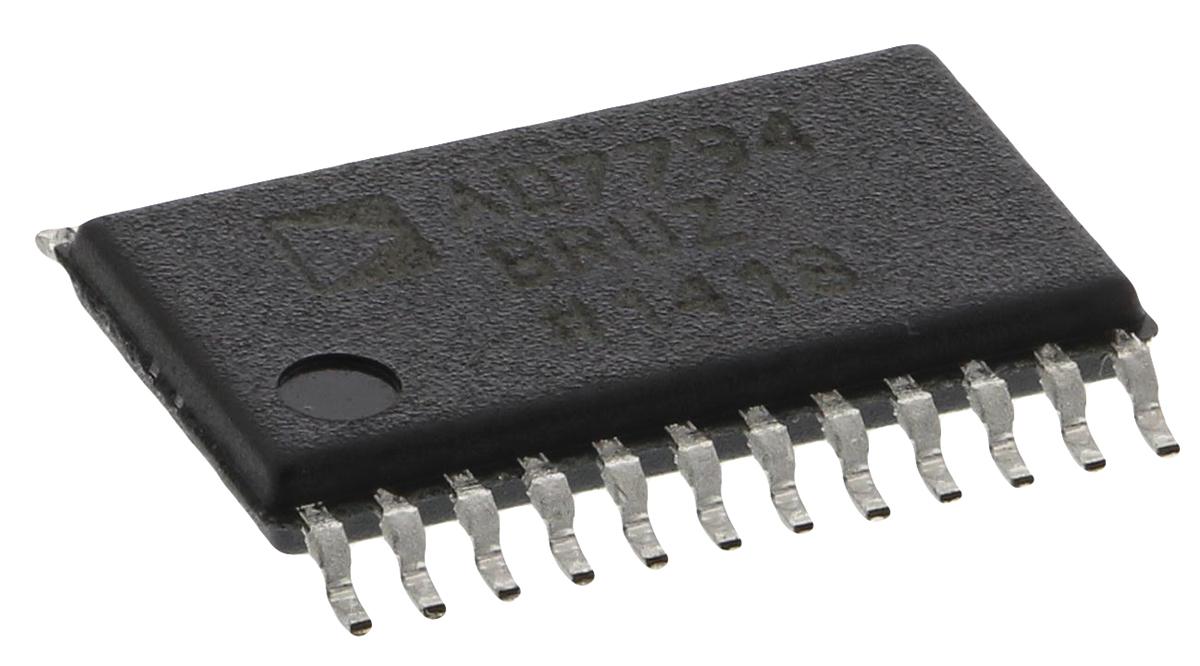

Analog Devices AD7794BRUZ, 24 bit Serial ADC Differential Input, 24-Pin TSSOP

AD7794BRUZ Analog Devices , 24 bit Serial ADC Differential Input, 24-Pin TSSOP
Analog Devices

Product Information

Number of ADCs:
6
Integral Nonlinearity Error:
±15ppm FSR
Dimensions:
7.8 x 4.4 x 1.05mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
105 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI)
Input Signal Type:
Differential
Typical Single Supply Voltage:
3.3 V, 5 V
Package Type:
TSSOP
Architecture:
Delta Sigma
Input Type:
Voltage
Sampling Rate:
0.47ksps
Resolution:
24-bit
Pin Count:
24
RoHs Compliant
Checking for live stock

This is 24 bit Serial ADC Differential Input 24-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD7794BRUZ. It contains 6 ADCs . Its integral nonlinearity error is ±15ppm fsr . The given dimensions of the product include 7.8 x 4.4 x 1.05mm. The product is available in surface mount configuration. It has a maximum operating temperature of 105 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi) type digital interface . The input signal is a kind of differential signal. It has a typical single supply voltage of 3.3 v, 5 v. The package is a sort of tssop. The product has been designed as delta sigma. It carries voltage input type. It has about 0.47ksps sampling rate . Features 24-bit resolution. It contains 24 pins.

pdf icon
AD7794/AD7795, 6-Channel, Low Noise, Low Power, 24-/16-Bit ADC with Instrumentation-Amp and Reference(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD7794BRUZ on website for other similar products.
We accept all major payment methods for all products including ET14003517. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD7794BRUZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue to Digital Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD7794BRUZ, 24 bit Serial ADC Differential Input, 24-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD7794BRUZ, 24 bit Serial ADC Differential Input, 24-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14003517 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14003517.
Yes. We ship AD7794BRUZ Internationally to many countries around the world.
