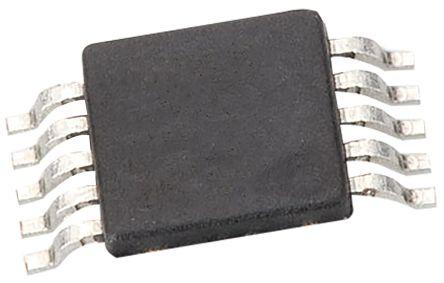

Analog Devices AD7685ARMZ, 16 bit Serial ADC Pseudo Differential Input, 10-Pin MSOP

Enrgtech Part No: ET14003502
|
Manufacturer Part No:
AD7685ARMZ
|
Manufacturer: Analog Devices

AD7685ARMZ Analog Devices , 16 bit Serial ADC Pseudo Differential Input, 10-Pin MSOP

Product Information

Number of ADCs:

Integral Nonlinearity Error:

±6LSB

Dimensions:

3 x 3 x 0.85mm

Mounting Type:

Surface Mount

Maximum Operating Temperature:

85 °C

Minimum Operating Temperature:

-40 °C

Digital Interface Type:

Serial (SPI/QSPI/Microwire)

Input Signal Type:

Pseudo Differential

Typical Single Supply Voltage:

2.5 V, 3.3 V, 5 V

Package Type:

MSOP

Architecture:

SAR

Input Type:

Voltage

Checking for live stock

This is 16 bit Serial ADC Pseudo Differential Input 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD7685ARMZ. It contains 1 ADCs . Its integral nonlinearity error is ±6lsb . The given dimensions of the product include 3 x 3 x 0.85mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . The input signal is a kind of pseudo differential signal. It has a typical single supply voltage of 2.5 v, 3.3 v, 5 v. The package is a sort of msop. The product has been designed as sar. It carries voltage input type. It has about 250ksps sampling rate . Features 16-bit resolution. It contains 10 pins.

AD7685, 16-Bit, 250kSPS PulSAR Analogue-to-Digital Converter(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search AD7685ARMZ on website for other similar products.

We accept all major payment methods for all products including ET14003502. Please check your shopping cart at the time of order.

You can order Analog Devices brand products with AD7685ARMZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Analogue to Digital Converters category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Analog Devices AD7685ARMZ, 16 bit Serial ADC Pseudo Differential Input, 10-Pin MSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD7685ARMZ, 16 bit Serial ADC Pseudo Differential Input, 10-Pin MSOP.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14003502 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14003502.

Yes. We ship AD7685ARMZ Internationally to many countries around the world.
