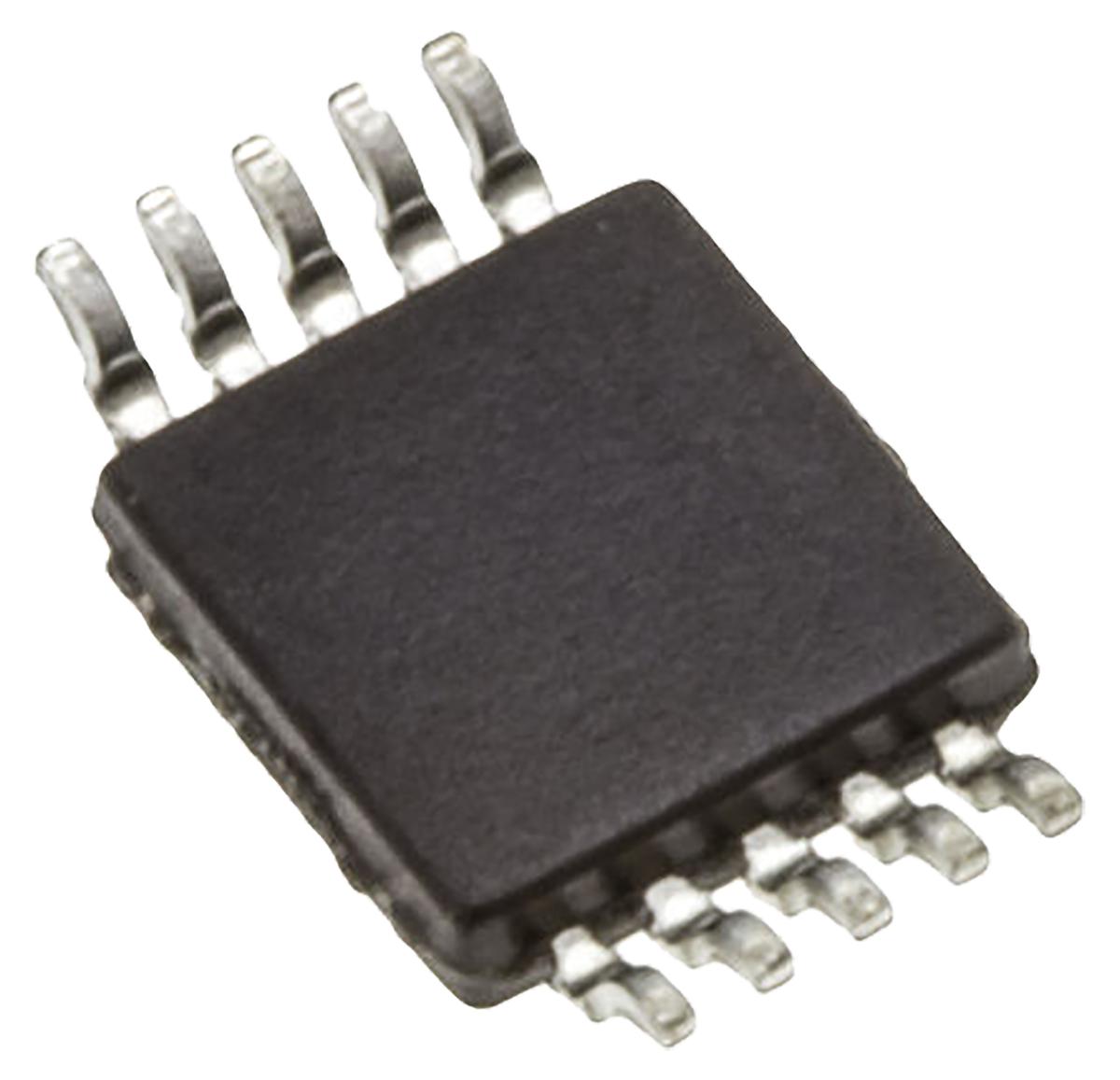

Analog Devices AD7691BRMZ, 18-bit Serial ADC Differential Input, 10-Pin MSOP

AD7691BRMZ Analog Devices , 18-bit Serial ADC Differential Input, 10-Pin MSOP
AD7691BRMZ
Analog Devices

Product Information

Number of ADCs:
1
Integral Nonlinearity Error:
±1.5LSB
Dimensions:
3 x 3 x 0.85mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
85 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI/QSPI/Microwire)
Input Signal Type:
Differential
Typical Single Supply Voltage:
2.5 V, 3.3 V, 5 V
Package Type:
MSOP
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
250ksps
Resolution:
18-bit
Pin Count:
10
RoHs Compliant
Checking for live stock

This is 18-bit Serial ADC Differential Input 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD7691BRMZ. It contains 1 ADCs . Its integral nonlinearity error is ±1.5lsb . The given dimensions of the product include 3 x 3 x 0.85mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . The input signal is a kind of differential signal. It has a typical single supply voltage of 2.5 v, 3.3 v, 5 v. The package is a sort of msop. The product has been designed as sar. It carries voltage input type. It has about 250ksps sampling rate . Features 18-bit resolution. It contains 10 pins.

pdf icon
ADC Single SAR 250KSPS 18-Bit Serial(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD7691BRMZ on website for other similar products.
We accept all major payment methods for all products including ET13948600. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD7691BRMZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue to Digital Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD7691BRMZ, 18-bit Serial ADC Differential Input, 10-Pin MSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD7691BRMZ, 18-bit Serial ADC Differential Input, 10-Pin MSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13948600 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13948600.
Yes. We ship AD7691BRMZ Internationally to many countries around the world.
