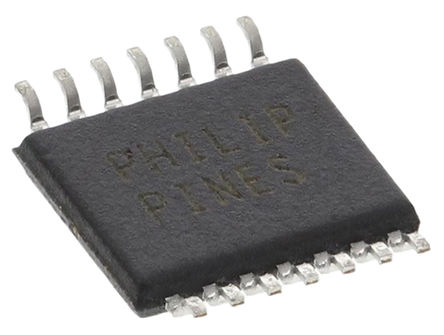

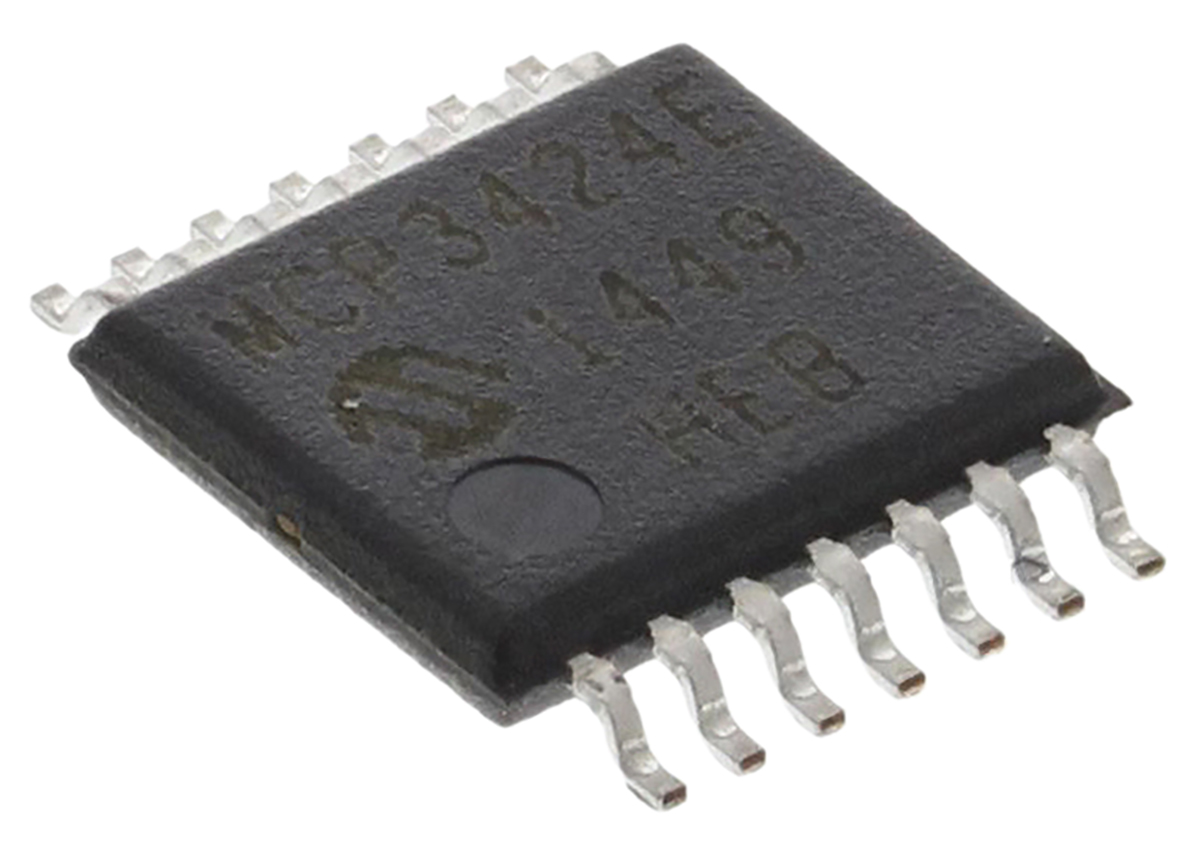

Microchip MCP3424-E/ST, 18 bit Serial ADC Differential, Single Ended Input, 14-Pin TSSOP

Enrgtech Part No: ET13831951
|
Manufacturer Part No:
MCP3424-E/ST
|
Manufacturer: Microchip

MCP3424-E-ST Microchip MCP3424-E/ST, 18 bit Serial ADC Differential, Single Ended Input, 14-Pin TSSOP

Product Information

Number of ADCs:

Integral Nonlinearity Error:

35ppm FSR

Dimensions:

5 x 4.4 x 0.9mm

Mounting Type:

Surface Mount

Maximum Operating Temperature:

85 °C

Minimum Operating Temperature:

-40 °C

Digital Interface Type:

Serial (I2C)

Input Signal Type:

Differential, Single Ended

Typical Single Supply Voltage:

5 V

Package Type:

TSSOP

Architecture:

Delta Sigma

Input Type:

Voltage

Checking for live stock

This is 18 bit Serial ADC Differential Single Ended Input 14-Pin TSSOP manufactured by Microchip. The manufacturer part number is MCP3424-E/ST. It contains 4 ADCs . Its integral nonlinearity error is 35ppm fsr . The given dimensions of the product include 5 x 4.4 x 0.9mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (i2c) type digital interface . The input signal is a kind of differential, single ended signal. It has a typical single supply voltage of 5 v. The package is a sort of tssop. The product has been designed as delta sigma. It carries voltage input type. It has about 0.004ksps sampling rate . Features 18-bit resolution. It contains 14 pins.
