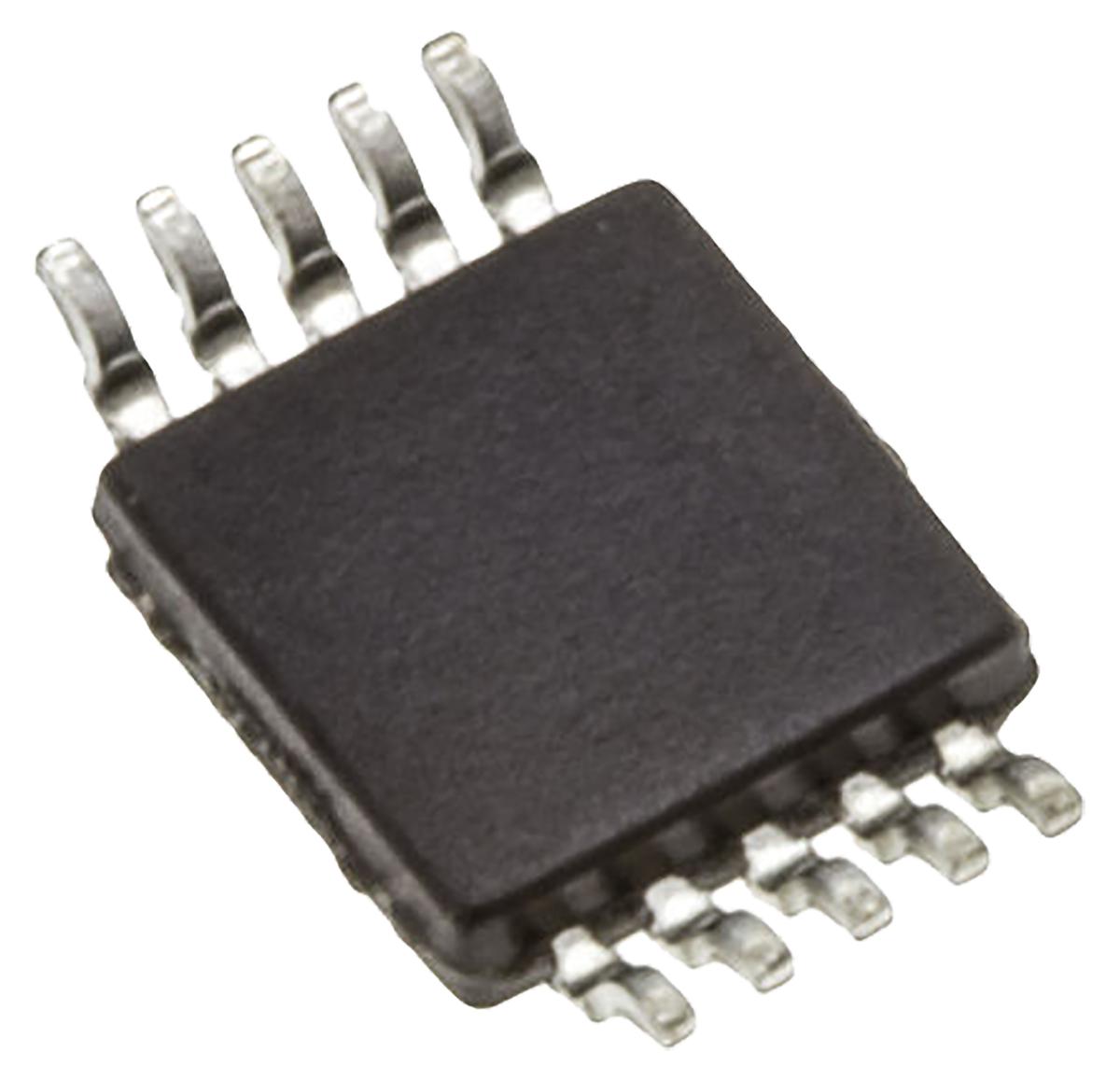

Analog Devices AD7791BRMZ, 24-bit Serial ADC Differential Input, 10-Pin MSOP

AD7791BRMZ Analog Devices , 24-bit Serial ADC Differential Input, 10-Pin MSOP
AD7791BRMZ
Analog Devices

Product Information

Number of ADCs:
1
Integral Nonlinearity Error:
±15ppm FSR
Dimensions:
3 x 3 x 0.85mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
105 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI)
Input Signal Type:
Differential
Typical Single Supply Voltage:
3.3 V, 5 V
Package Type:
MSOP
Architecture:
Delta Sigma
Input Type:
Voltage
Sampling Rate:
0.12ksps
Resolution:
24-bit
Pin Count:
10
RoHs Compliant
Checking for live stock

This is 24-bit Serial ADC Differential Input 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD7791BRMZ. It contains 1 ADCs . Its integral nonlinearity error is ±15ppm fsr . The given dimensions of the product include 3 x 3 x 0.85mm. The product is available in surface mount configuration. It has a maximum operating temperature of 105 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi) type digital interface . The input signal is a kind of differential signal. It has a typical single supply voltage of 3.3 v, 5 v. The package is a sort of msop. The product has been designed as delta sigma. It carries voltage input type. It has about 0.12ksps sampling rate . Features 24-bit resolution. It contains 10 pins.

pdf icon
AD7791 A-D,Converter,Low Power,16-Bit,SD,ADC Data Sheet(Technical Reference)
pdf icon
AD7791, Low Power, Buffered 24-Bit Sigma-Delta Analogue-to-Digital Converter (ADC)(Technical Reference)
