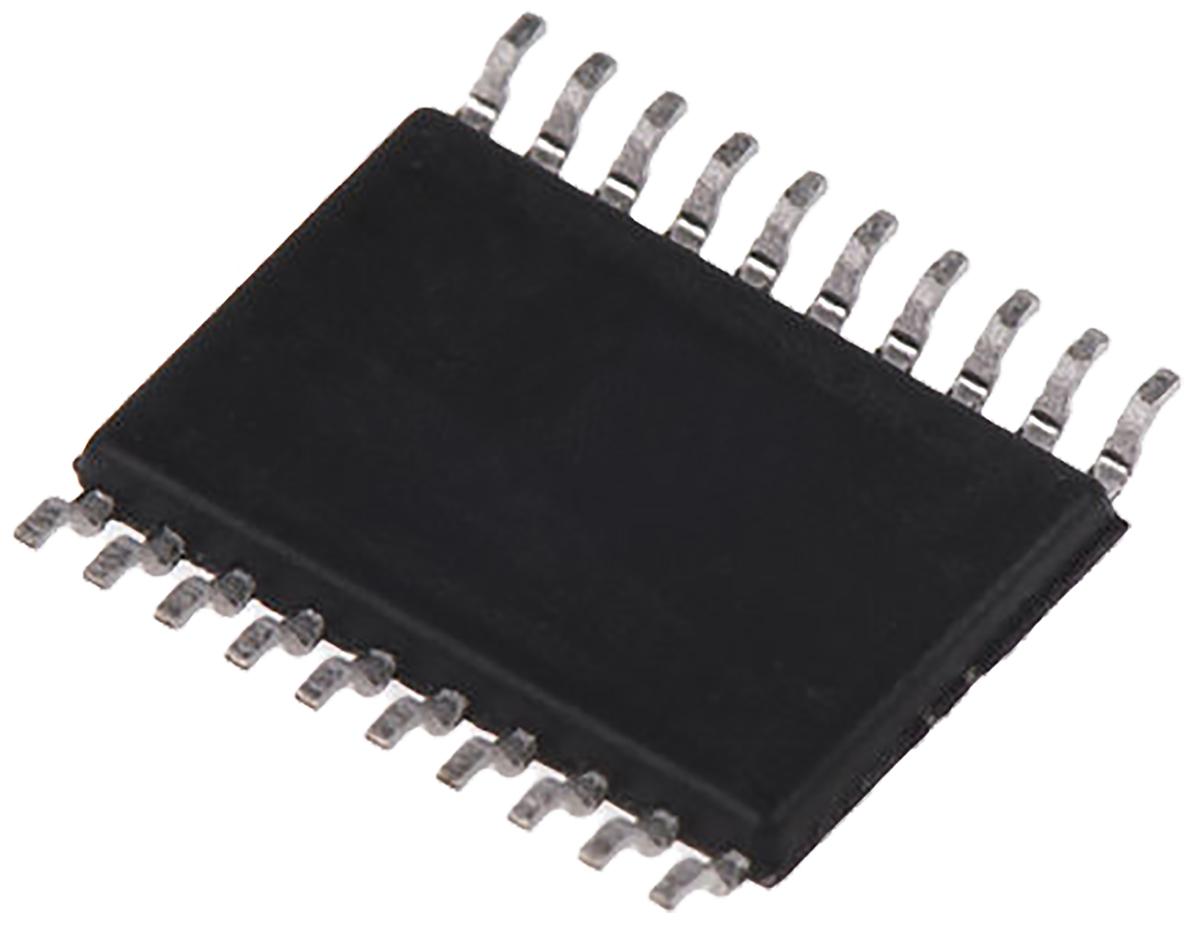

Analog Devices AD7812YRUZ, 10-bit Serial ADC Pseudo Differential, Single Ended Input, 20-Pin TSSOP

AD7812YRUZ Analog Devices , 10-bit Serial ADC Pseudo Differential, Single Ended Input, 20-Pin TSSOP
AD7812YRUZ
Analog Devices

Product Information

Number of ADCs:
8
Integral Nonlinearity Error:
±1LSB
Dimensions:
6.5 x 4.4 x 1.05mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
105 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI)
Input Signal Type:
Pseudo Differential, Single Ended
Typical Single Supply Voltage:
3.3 V, 5 V
Package Type:
TSSOP
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
350ksps
Resolution:
10-bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is 10-bit Serial ADC Pseudo Differential Single Ended Input 20-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD7812YRUZ. It contains 8 ADCs . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 6.5 x 4.4 x 1.05mm. The product is available in surface mount configuration. It has a maximum operating temperature of 105 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi) type digital interface . The input signal is a kind of pseudo differential, single ended signal. It has a typical single supply voltage of 3.3 v, 5 v. The package is a sort of tssop. The product has been designed as sar. It carries voltage input type. It has about 350ksps sampling rate . Features 10-bit resolution. It contains 20 pins.

pdf icon
ADC Single SAR 350KSPS 10-Bit Serial(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD7812YRUZ on website for other similar products.
We accept all major payment methods for all products including ET13804648. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD7812YRUZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue to Digital Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD7812YRUZ, 10-bit Serial ADC Pseudo Differential, Single Ended Input, 20-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD7812YRUZ, 10-bit Serial ADC Pseudo Differential, Single Ended Input, 20-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13804648 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13804648.
Yes. We ship AD7812YRUZ Internationally to many countries around the world.
