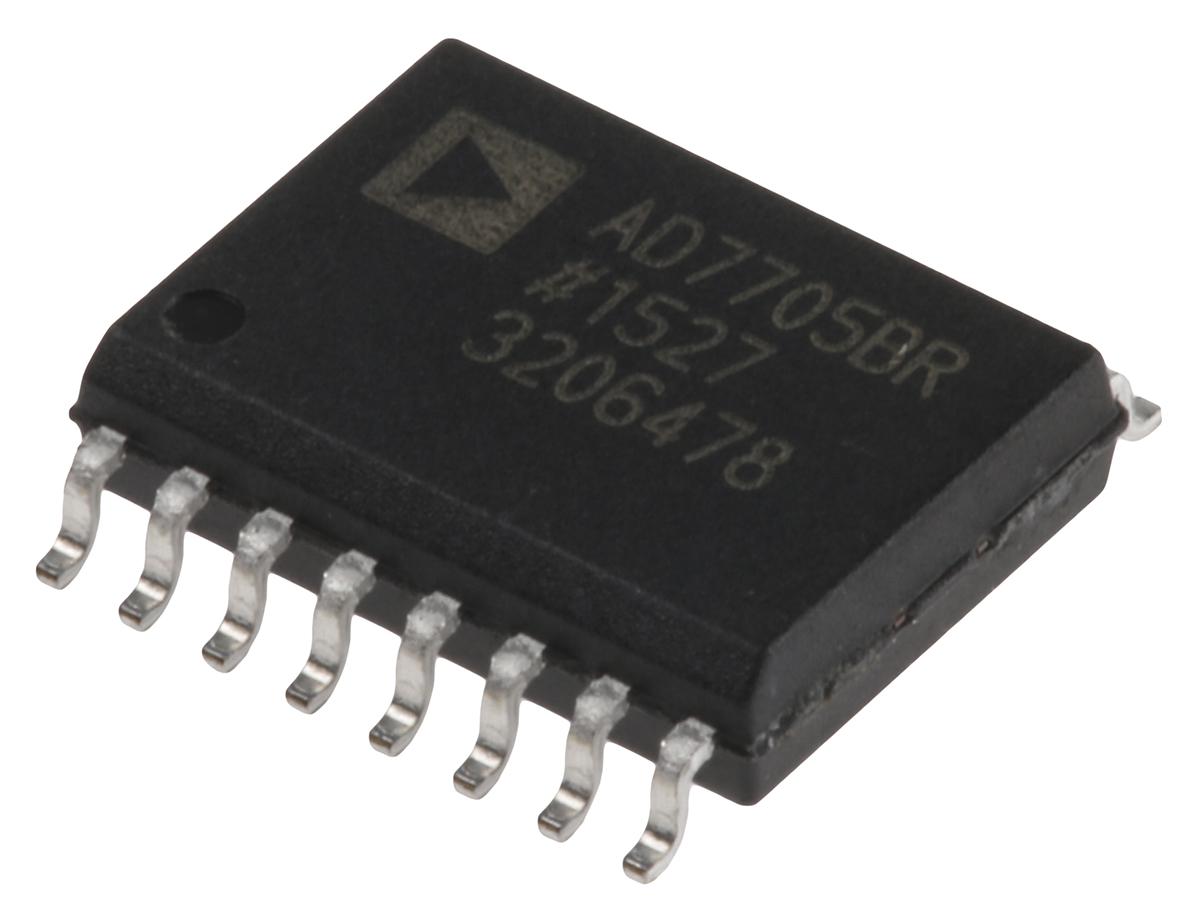

Analog Devices AD7705BRZ, 16-Bit Serial ADC Differential Input, 16-Pin SOIC W

AD7705BRZ Analog Devices , 16-Bit Serial ADC Differential Input, 16-Pin SOIC W
Analog Devices

Product Information

Number of ADCs:
2
Integral Nonlinearity Error:
±0.003%FSR
Dimensions:
10.5 x 7.6 x 2.35mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
85 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI)
Input Signal Type:
Differential
Typical Single Supply Voltage:
3 V, 5 V
Package Type:
SOIC W
Architecture:
Delta Sigma
Input Type:
Voltage
Sampling Rate:
0.5ksps
Resolution:
16-bit
Pin Count:
16
RoHs Compliant
Checking for live stock

This is 16-Bit Serial ADC Differential Input 16-Pin SOIC W manufactured by Analog Devices. The manufacturer part number is AD7705BRZ. It contains 2 ADCs . Its integral nonlinearity error is ±0.003%fsr . The given dimensions of the product include 10.5 x 7.6 x 2.35mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi) type digital interface . The input signal is a kind of differential signal. It has a typical single supply voltage of 3 v, 5 v. The package is a sort of soic w. The product has been designed as delta sigma. It carries voltage input type. It has about 0.5ksps sampling rate . Features 16-bit resolution. It contains 16 pins.
