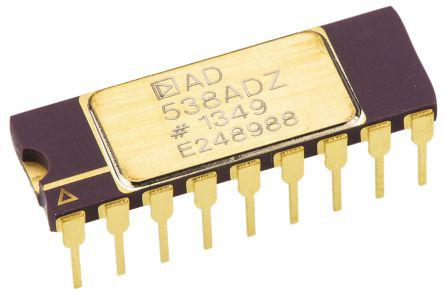

Analog Devices AD538ADZ 2-quadrant Voltage Divider and Multiplier, 400 kHz, 18-Pin SBCDIP

AD538ADZ Analog Devices 2-quadrant Voltage Divider and Multiplier, 400 kHz, 18-Pin SBCDIP
AD538ADZ
Analog Devices

Product Information

Number of Quadrants:
2
Dimensions:
23.12 x 7.62 x 3.05mm
Mounting Type:
Through Hole
Maximum Dual Supply Voltage:
±18V
Minimum Operating Temperature:
-25 °C
Output Type:
Single Ended
Height:
3.05mm
Width:
7.62mm
Length:
23.12mm
Package Type:
SBCDIP
Maximum Operating Frequency:
400 kHz
Minimum Dual Supply Voltage:
±4.5V
Maximum Operating Temperature:
+85 °C
Pin Count:
18
Number of Elements per Chip:
1
RoHs Compliant
Checking for live stock

This is 2-quadrant Voltage Divider and Multiplier 400 kHz 18-Pin SBCDIP manufactured by Analog Devices. The manufacturer part number is AD538ADZ. It has 2 number of quadrants included . The given dimensions of the product include 23.12 x 7.62 x 3.05mm. The product is available in through hole configuration. With ±18v of maximum dual supply voltage . Whereas, the minimum operating temperature of the product is -25 °c. Furthermore, it has asingle ended output. In addition, the height is 3.05mm. Furthermore, the product is 7.62mm wide. Its accurate length is 23.12mm. The package is a sort of sbcdip. It carries 400 khz of maximum operating frequency. With ±4.5v as a minimum dual supply voltage . It has a maximum operating temperature of +85 °c. It contains 18 pins. It consists of 1 elements per chip.

pdf icon
Datasheet(Technical Reference)
pdf icon
Analog Devices Multipliers Tutorial(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD538ADZ on website for other similar products.
We accept all major payment methods for all products including ET16823781. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD538ADZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue Multipliers and Dividers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD538ADZ 2-quadrant Voltage Divider and Multiplier, 400 kHz, 18-Pin SBCDIP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD538ADZ 2-quadrant Voltage Divider and Multiplier, 400 kHz, 18-Pin SBCDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16823781 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16823781.
Yes. We ship AD538ADZ Internationally to many countries around the world.
