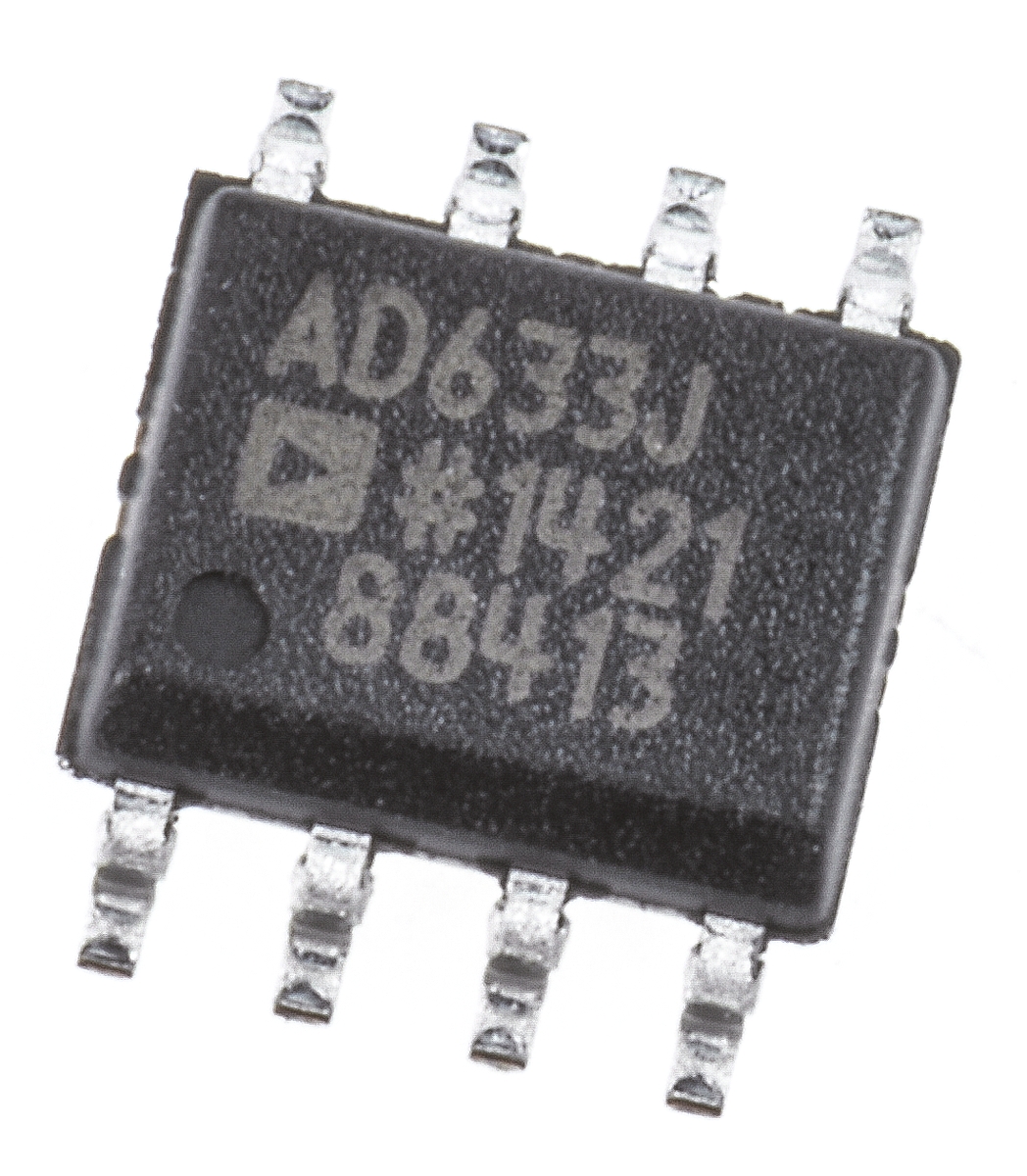

Analog Devices AD633JRZ 4-quadrant Voltage Multiplier, 1 MHz, 8-Pin SOIC

Enrgtech Part No: ET14102161
|
Manufacturer Part No:
AD633JRZ
|
Manufacturer: Analog Devices

AD633JRZ Analog Devices 4-quadrant Voltage Multiplier, 1 MHz, 8-Pin SOIC

Product Information

Number of Quadrants:

Dimensions:

5 x 4 x 1.5mm

Mounting Type:

Surface Mount

Maximum Dual Supply Voltage:

±18V

Minimum Operating Temperature:

0 °C

Output Type:

Single Ended

Height:

1.5mm

Width:

4mm

Length:

5mm

Package Type:

SOIC

Maximum Operating Frequency:

1 MHz

Minimum Dual Supply Voltage:

±8V

Checking for live stock

This is 4-quadrant Voltage Multiplier 1 MHz 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD633JRZ. It has 4 number of quadrants included . The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. With ±18v of maximum dual supply voltage . Whereas, the minimum operating temperature of the product is 0 °c. Furthermore, it has asingle ended output. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. The package is a sort of soic. It carries 1 mhz of maximum operating frequency. With ±8v as a minimum dual supply voltage . It has a maximum operating temperature of +70 °c. It contains 8 pins. It consists of 1 elements per chip.

Datasheet(Technical Reference)

Analog Devices Multipliers Tutorial(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search AD633JRZ on website for other similar products.

We accept all major payment methods for all products including ET14102161. Please check your shopping cart at the time of order.

You can order Analog Devices brand products with AD633JRZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Analogue Multipliers and Dividers category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Analog Devices AD633JRZ 4-quadrant Voltage Multiplier, 1 MHz, 8-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD633JRZ 4-quadrant Voltage Multiplier, 1 MHz, 8-Pin SOIC.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14102161 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14102161.

Yes. We ship AD633JRZ Internationally to many countries around the world.
