Name: AD734BNZ, Analog Devices
Brand: Analog Devices
SKU: ET13948572
Price: 60.75 GBP
Availability: Discontinued

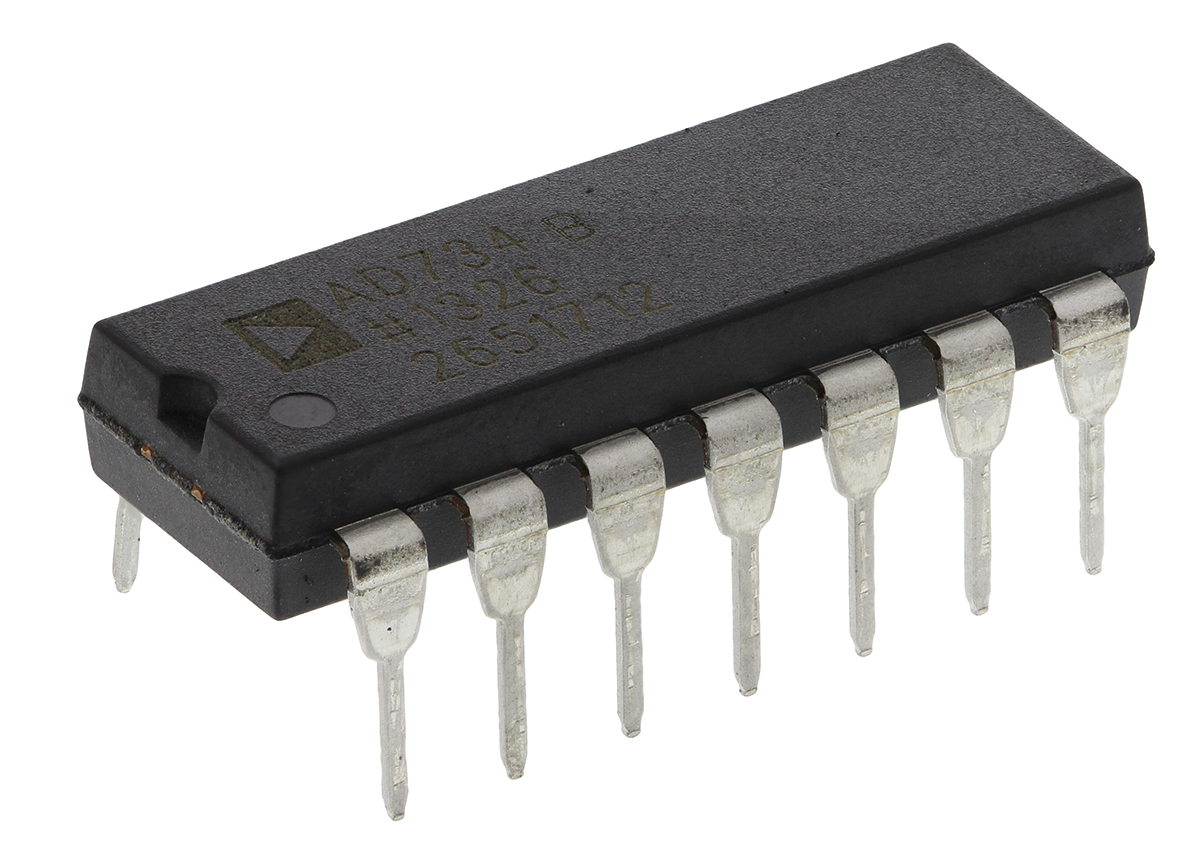

AD734BNZ Analog Devices 4-quadrant Voltage Divider and Multiplier, 10 MHz, 14-Pin PDIP

(0)

Product Information

Number of Quadrants:

Dimensions:

16.89 x 7.24 x 3.43mm

Mounting Type:

Through Hole

Maximum Dual Supply Voltage:

±16.5V

Minimum Operating Temperature:

-40 °C

Output Type:

Single Ended

Height:

3.43mm

Width:

7.24mm

Length:

16.89mm

Package Type:

PDIP

Maximum Operating Frequency:

10 MHz

Minimum Dual Supply Voltage:

±8V

Checking for live stock

This is 4-quadrant Voltage Divider and Multiplier 10 MHz 14-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD734BNZ. It has 4 number of quadrants included . The given dimensions of the product include 16.89 x 7.24 x 3.43mm. The product is available in through hole configuration. With ±16.5v of maximum dual supply voltage . Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it has asingle ended output. In addition, the height is 3.43mm. Furthermore, the product is 7.24mm wide. Its accurate length is 16.89mm. The package is a sort of pdip. It carries 10 mhz of maximum operating frequency. With ±8v as a minimum dual supply voltage . It has a maximum operating temperature of +85 °c. It contains 14 pins. It consists of 1 elements per chip.

Datasheet(Technical Reference)

Analog Devices Multipliers Tutorial(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
