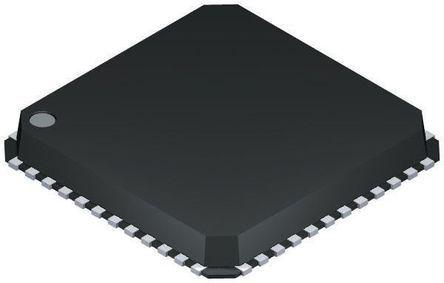

AD9824KCPZ, Analogue Front End IC, 1-channel 14 bit, 30000ksps SPI, 48-Pin LFCSP

AD9824KCPZ , Analogue Front End IC, 1-channel 14 bit, 30000ksps SPI, 48-Pin LFCSP
Analog Devices

Product Information

Number of ADCs:
1
Dimensions:
7 x 7 x 0.83mm
Mounting Type:
Surface Mount
Application:
Digital Still Camera, Imaging
Power Supply Type:
Single
Number of Channels per Chip:
1
Height:
0.83mm
Width:
7mm
Length:
7mm
Package Type:
LFCSP
Interface Type:
SPI
Minimum Operating Temperature:
-20 °C
Minimum Operating Supply Voltage:
2.7 V
Maximum Operating Supply Voltage:
3.6 V
Sampling Rate:
30000ksps
Maximum Operating Temperature:
+85 °C
Resolution:
14 bits
Pin Count:
48
RoHs Compliant
Checking for live stock

This is Analogue Front End IC 1-channel 14 bit 30000ksps SPI 48-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is AD9824KCPZ. It contains 1 ADCs . The given dimensions of the product include 7 x 7 x 0.83mm. The product is available in surface mount configuration. Applications Information involves digital still camera, imaging. It is a type of single power supply. It comprises 1 channels per chip. In addition, the height is 0.83mm. Furthermore, the product is 7mm wide. Its accurate length is 7mm. The package is a sort of lfcsp. It is a type of spi interface. Whereas, the minimum operating temperature of the product is -20 °c. While its minimum operating supply voltage is 2.7 v. It has 3.6 v maximum operating supply voltage. It has about 30000ksps sampling rate . It has a maximum operating temperature of +85 °c. Features 14 bits resolution. It contains 48 pins.

pdf icon
AFE Video 1ADC 14-Bit 3.3V 48-Pin LFCSP(Technical Reference)
pdf icon
High Integration Simplifies Signal Processing For CCDs(Technical Reference)
