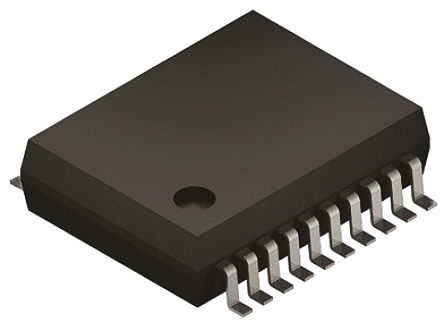

MCP3910A1-E/SS, Energy Meter Front End, 2-channel 24 bit, 125ksps SPI, 20-Pin SSOP

MCP3910A1-E-SS MCP3910A1-E/SS, Energy Meter Front End, 2-channel 24 bit, 125ksps SPI, 20-Pin SSOP
Microchip

Product Information

Number of ADCs:
2
Dimensions:
7.5 x 5.6 x 1.85mm
Mounting Type:
Surface Mount
Application:
Audio Voice Recognition, Automotive, Energy Metering and Power Measurement, Isolated Sensor Applications, Medical and Power Monitoring, Portable Instrumentation, Single-Phase and Polyphase Energy Meters
Power Supply Type:
Single
Number of Channels per Chip:
2
Height:
1.85mm
Width:
5.6mm
Length:
7.5mm
Package Type:
SSOP
Interface Type:
SPI
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
2.7 V
Maximum Operating Supply Voltage:
3.6 V
Sampling Rate:
125ksps
Maximum Operating Temperature:
+125 °C
Resolution:
24 bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is Energy Meter Front End 2-channel 24 bit 125ksps SPI 20-Pin SSOP manufactured by Microchip. The manufacturer part number is MCP3910A1-E/SS. It contains 2 ADCs . The given dimensions of the product include 7.5 x 5.6 x 1.85mm. The product is available in surface mount configuration. Applications Information involves audio voice recognition, automotive, energy metering and power measurement, isolated sensor applications, medical and power monitoring, portable instrumentation, single-phase and polyphase energy meters. It is a type of single power supply. It comprises 2 channels per chip. In addition, the height is 1.85mm. Furthermore, the product is 5.6mm wide. Its accurate length is 7.5mm. The package is a sort of ssop. It is a type of spi interface. Whereas, the minimum operating temperature of the product is -40 °c. While its minimum operating supply voltage is 2.7 v. It has 3.6 v maximum operating supply voltage. It has about 125ksps sampling rate . It has a maximum operating temperature of +125 °c. Features 24 bit resolution. It contains 20 pins.
