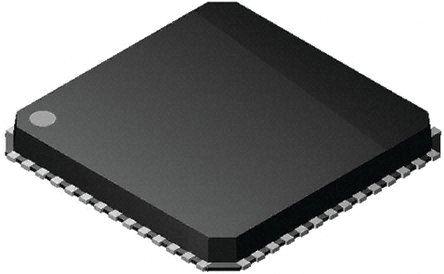

ADAS1000BCPZ, Analogue Front End IC, 5-channel 19 bit, 2Msps DSP, QSPI, Serial, SPI, 56-Pin LFCSP VQ

ADAS1000BCPZ , Analogue Front End IC, 5-channel 19 bit, 2Msps DSP, QSPI, Serial, SPI, 56-Pin LFCSP VQ
Analog Devices

Product Information

Number of ADCs:
6
Dimensions:
9.1 x 9.1 x 0.85mm
Mounting Type:
Surface Mount
Application:
ECG:Monitor and Diagnostic
Power Supply Type:
Single
Number of Channels per Chip:
5
Height:
0.85mm
Width:
9.1mm
Length:
9.1mm
Package Type:
LFCSP VQ
Interface Type:
DSP, QSPI, Serial, SPI
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
1.76 (Analogue) V, 3.15 (Digital) V
Maximum Operating Supply Voltage:
1.84 (Analogue) V, 5.5 (Digital) V
Sampling Rate:
2Msps
Maximum Operating Temperature:
+85 °C
Resolution:
19 bit
Pin Count:
56
RoHs Compliant
Checking for live stock

This is Analogue Front End IC 5-channel 19 bit 2Msps DSP QSPI Serial SPI 56-Pin LFCSP VQ manufactured by Analog Devices. The manufacturer part number is ADAS1000BCPZ. It contains 6 ADCs . The given dimensions of the product include 9.1 x 9.1 x 0.85mm. The product is available in surface mount configuration. Applications Information involves ecg:monitor and diagnostic. It is a type of single power supply. It comprises 5 channels per chip. In addition, the height is 0.85mm. Furthermore, the product is 9.1mm wide. Its accurate length is 9.1mm. The package is a sort of lfcsp vq. It is a type of dsp, qspi, serial, spi interface. Whereas, the minimum operating temperature of the product is -40 °c. While its minimum operating supply voltage is 1.76 (analogue) v, 3.15 (digital) v. It has 1.84 (analogue) v, 5.5 (digital) v maximum operating supply voltage. It has about 2msps sampling rate . It has a maximum operating temperature of +85 °c. Features 19 bit resolution. It contains 56 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
Five Electrode ECG Analog Front End(Technical Reference)
