Texas Instruments TMUX7213RUMR

TMUX7213RUMR Texas Instruments
Texas Instruments

Product Information

Channel-to-Channel Matching (ΔRon):
100mOhm
HTSUS:
8542.39.0001
RoHS Status:
Not applicable
Operating Temperature:
-40°C ~ 125°C (TA)

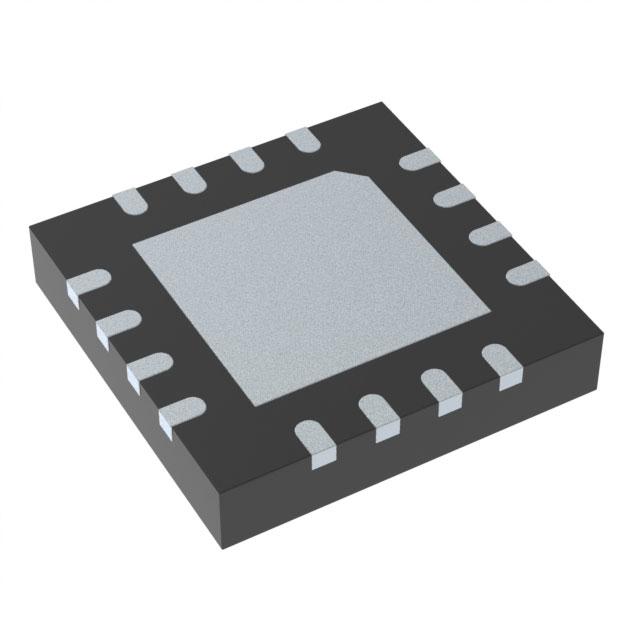

Package / Case:
16-WQFN Exposed Pad
Switch Time (Ton, Toff) (Max):
185ns, 210ns
Current - Leakage (IS(off)) (Max):
1nA
Voltage - Supply, Dual (V±):
±4.5V ~ 22V
-3db Bandwidth:
48MHz
Multiplexer/Demultiplexer Circuit:
1:1
Package:
Tape & Reel (TR)
Channel Capacitance (CS(off), CD(off)):
28pF, 45pF
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Supply, Single (V+):
4.5V ~ 44V
standardLeadTime:
6 Weeks
Switch Circuit:
SPST - NO/NC
Number of Circuits:
4
Mounting Type:
Surface Mount
Series:
-
Crosstalk:
-93dB @ 1MHz
On-State Resistance (Max):
2.5Ohm
Supplier Device Package:
16-WQFN (4x4)
Charge Injection:
92pC
ECCN:
EAR99
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is TMUX7213RUMR. Ron variations channel-to-channel matching included [Channel-to-Channel Matching (ΔRon)]. It is assigned with possible HTSUS value of 8542.39.0001. The product is not applicable. The product has -40°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in 16-wqfn exposed pad. Has a 185ns, 210ns maximum switch time. The maximum current leakage of the product included 1na. The typical supply voltage ±4.5v ~ 22v. A 48mhz of bandwidth. Ratio of multiplexer/demultiplexer circuit 1:1. It is shipped in tape & reel (tr) package . Features 28pf, 45pf channel capacitance. Its typical moisture sensitivity level is 1 (unlimited). Single voltage supply of 4.5v ~ 44v. It has a long 6 weeks standard lead time. Features switch circuit of spst - no/nc. It integrates 4 circuits. The product is available in surface mount configuration. A -93db @ 1mhz of crosstalk. It has a maximum on-state resistance of 2.5ohm. 16-wqfn (4x4) is the supplier device package value. It has 92pc charge injection parameters. The product is designated with the ear99 code number.
