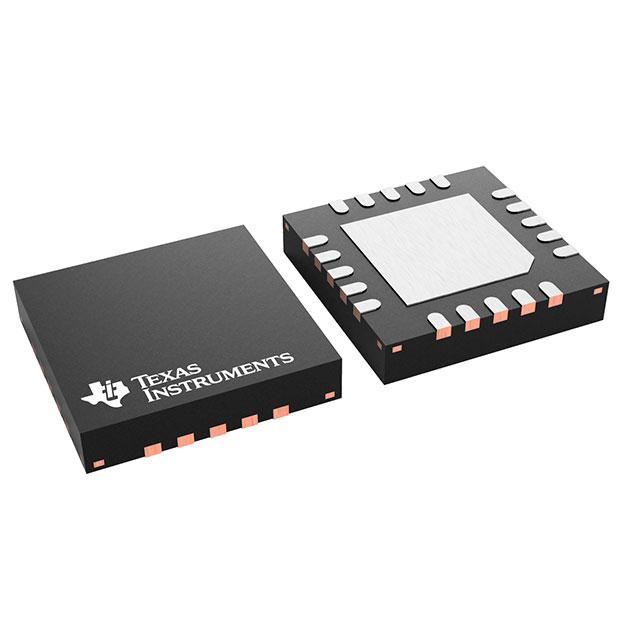

Texas Instruments TMUX7234RRQR

TMUX7234RRQR Texas Instruments
Texas Instruments

Product Information

HTSUS:
8542.39.0001
RoHS Status:
Not applicable
Operating Temperature:
-40°C ~ 125°C (TA)
Channel-to-Channel Matching (ΔRon):
200mOhm
Package / Case:
20-WFQFN Exposed Pad
Switch Time (Ton, Toff) (Max):
100ns, 90ns
Current - Leakage (IS(off)) (Max):
1nA
edacadModel:
TMUX7234RRQR Models
Voltage - Supply, Dual (V±):
±4.5V ~ 22V
-3db Bandwidth:
92MHz
Multiplexer/Demultiplexer Circuit:
2:1
edacadModelUrl:
/en/models/15205145
Package:
Tape & Reel (TR)
Channel Capacitance (CS(off), CD(off)):
16pF, 26pF
Moisture Sensitivity Level (MSL):
2 (1 Year)
Voltage - Supply, Single (V+):
4.5V ~ 44V
standardLeadTime:
6 Weeks
Switch Circuit:
SPDT - NO/NC
Number of Circuits:
4
Mounting Type:
Surface Mount
Series:
-
Crosstalk:
-105dB @ 1MHz
On-State Resistance (Max):
5.8Ohm
Supplier Device Package:
20-WQFN (4x4)
Charge Injection:
3pC
ECCN:
EAR99
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is TMUX7234RRQR. It is assigned with possible HTSUS value of 8542.39.0001. The product is not applicable. The product has -40°c ~ 125°c (ta) operating temperature range. Features 200mohm of channel-to-channel matching. Moreover, the product comes in 20-wfqfn exposed pad. Has a 100ns, 90ns maximum switch time. The maximum current leakage of the product included 1na. The typical supply voltage ±4.5v ~ 22v. A 92mhz of bandwidth. Ratio of multiplexer/demultiplexer circuit 2:1. It is shipped in tape & reel (tr) package . Features 16pf, 26pf channel capacitance. Its typical moisture sensitivity level is 2 (1 year). Single voltage supply of 4.5v ~ 44v. It has a long 6 weeks standard lead time. Features switch circuit of spdt - no/nc. It integrates 4 circuits. The product is available in surface mount configuration. A -105db @ 1mhz of crosstalk. It has a maximum on-state resistance of 5.8ohm. 20-wqfn (4x4) is the supplier device package value. It has 3pc charge injection parameters. The product is designated with the ear99 code number.
