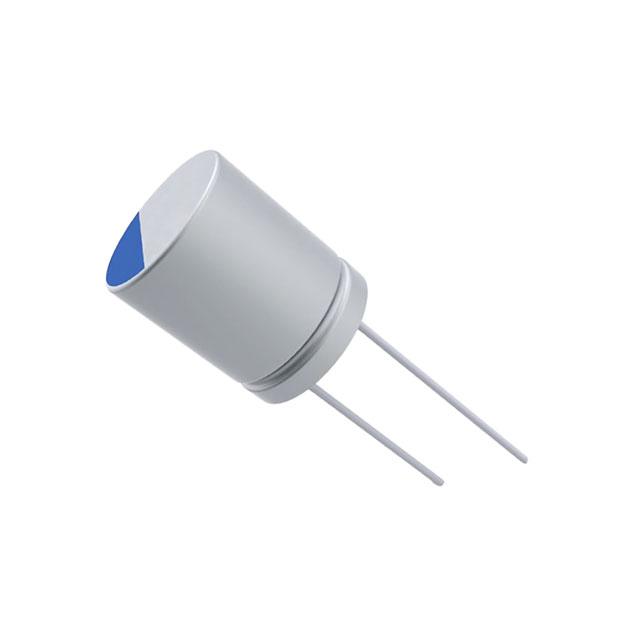

KEMET A758KK687M0JAAE014

A758KK687M0JAAE014 KEMET
A758KK687M0JAAE014
KEMET

Product Information

Diameter:
8mm
Ripple Current:
4.1A
Polarised:
Polar
Dimensions:
8 (Dia) x 8mm
Mounting Type:
Through Hole
Series:
A758
Minimum Operating Temperature:
-55°C
Dissipation Factor:
10%
Height:
8mm
Capacitance:
680µF
Maximum Operating Temperature:
+105°C
Voltage:
6.3V dc
Leakage Current:
642.6 μA
Electrolyte Type:
Solid
Lifetime:
5000h
Lead Pitch:
3.5mm
Dielectric Material Family:
Aluminium
Tolerance:
±20%
Equivalent Series Resistance:
14mΩ
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
14mOhm
Capacitance:
680 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
6.3 V
Height - Seated (Max):
0.354" (9.00mm)
title:
A758KK687M0JAAE014
Type:
Polymer
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
205 mA @ 120 Hz
edacadModel:
A758KK687M0JAAE014 Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/6196495
Manufacturer:
KEMET
Size / Dimension:
0.315" Dia (8.00mm)
standardLeadTime:
26 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
A758
Packaging:
Bulk
Ripple Current @ High Frequency:
4.1 A @ 100 kHz
Lifetime @ Temp.:
5000 Hrs @ 105°C
Lead Spacing:
0.138" (3.50mm)
Base Product Number:
A758KK
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by KEMET. The manufacturer part number is A758KK687M0JAAE014. Its diameter is 8mm. Furthermore, 4.1a is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 8 (dia) x 8mm. The product is available in through hole configuration. The product a758, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It provides a dissipation factor of 10%. In addition, the height is 8mm. It provides a 680µf of capacitance value. It has a maximum operating temperature of +105°c. It carries a 6.3v dc of voltage. It harbors 642.6 μa of leakage current. It is a solid electrolyte. It provides a long-lasting service for a period of 5000h. The lead features 3.5mm pitch. Whereas its dielectric material family is aluminium. It features ±20% of tolerance value. It has 14mω equivalent series resistance. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 14mohm. It provides a 680 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 6.3 v. It has the maximum seated height of 0.354" (9.00mm). It comes in polymer configuration. In addition, it is reach unaffected. Its ripple current at low frequency is 205 ma @ 120 hz. The product is widely employed in general purpose. The kemet's product offers user-desired applications. The product's diameters include 0.315" dia (8.00mm). It has a long 26 weeks standard lead time. Its typical moisture sensitivity level is not applicable. In addition, bulk is the available packaging type of the product. Additionally, it carries a ripple current and high frequency of 4.1 a @ 100 khz. This product offers longer life span for 5000 hrs @ 105°c. It is assigned with 0.138" (3.50mm) of lead spacing. Moreover, it corresponds to a758kk, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Specification sheet(Technical Reference)
pdf icon
KEM_A4069_A758.pdf(Datasheets)
