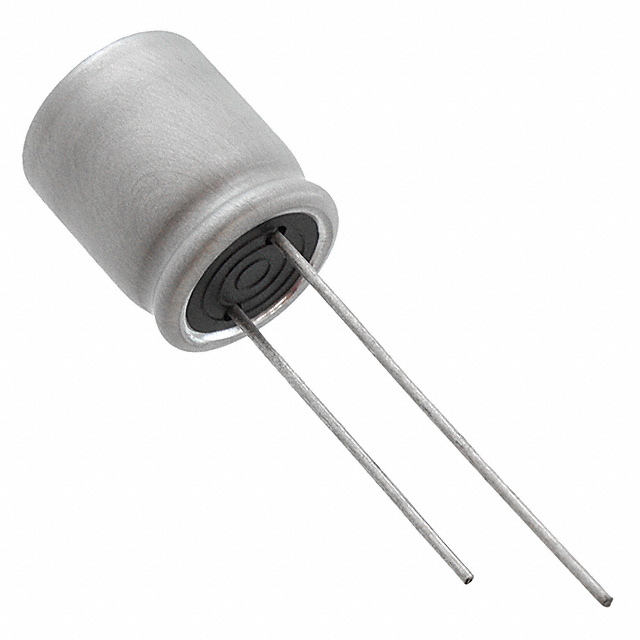

Panasonic Electronic Components 20SEPF560M

20SEPF560M Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
12mOhm
Capacitance:
560 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
20 V
Height - Seated (Max):
0.512" (13.00mm)
Type:
Polymer
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
270 mA @ 120 Hz
edacadModel:
20SEPF560M Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/4204153
Manufacturer:
Panasonic Electronic Components
Size / Dimension:
0.394" Dia (10.00mm)
standardLeadTime:
23 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
OS-CON™, SEPF
Packaging:
Bulk
Ripple Current @ High Frequency:
5.4 A @ 100 kHz
Lifetime @ Temp.:
5000 Hrs @ 105°C
Lead Spacing:
0.197" (5.00mm)
Base Product Number:
20SEPF
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is 20SEPF560M. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 12mohm. It provides a 560 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It features ±20% of tolerance value. It also exhibits voltage rating of 20 v. It has the maximum seated height of 0.512" (13.00mm). It comes in polymer configuration. In addition, it is reach unaffected. Its ripple current at low frequency is 270 ma @ 120 hz. The product is widely employed in general purpose. The panasonic electronic components's product offers user-desired applications. The product's diameters include 0.394" dia (10.00mm). It has a long 23 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product os-con™, sepf, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Additionally, it carries a ripple current and high frequency of 5.4 a @ 100 khz. This product offers longer life span for 5000 hrs @ 105°c. It is assigned with 0.197" (5.00mm) of lead spacing. Moreover, it corresponds to 20sepf, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
OS-CON 11/Dec/2018(PCN Packaging)
