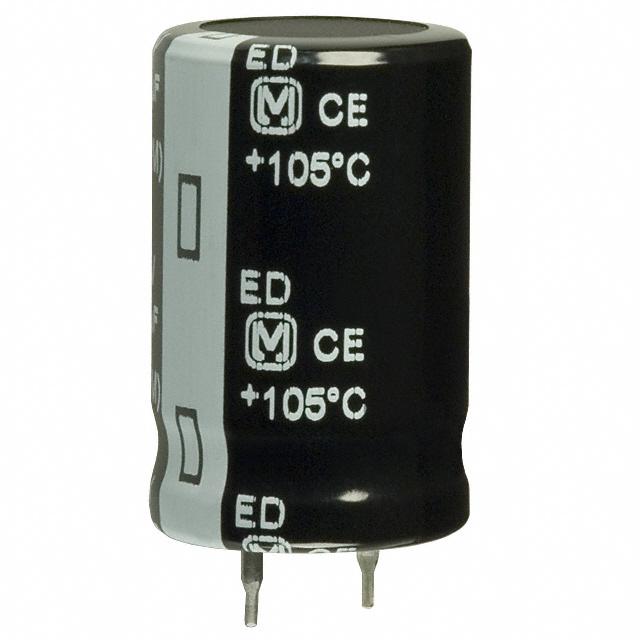

Panasonic Electronic Components EET-ED2D471BA

EET-ED2D471BA Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Ratings:
-
HTSUS:
8532.22.0040
ESR (Equivalent Series Resistance):
317mOhm @ 120Hz
Polarization:
Polar
Capacitance:
470 µF
Operating Temperature:
-40°C ~ 105°C
Package / Case:
Radial, Can - Snap-In
Tolerance:
±20%
Voltage - Rated:
200 V
Height - Seated (Max):
1.378" (35.00mm)
Ripple Current @ High Frequency:
2.64 A @ 100 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
1.85 A @ 120 Hz
edacadModel:
EET-ED2D471BA Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/483211
Package:
Bulk
Size / Dimension:
0.866" Dia (22.00mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
TS-ED
Lifetime @ Temp.:
3000 Hrs @ 105°C
Lead Spacing:
0.394" (10.00mm)
Base Product Number:
EET-ED
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EET-ED2D471BA. It is assigned with possible HTSUS value of 8532.22.0040. It carries ESR (Equivalent Series Resistance) of 317mohm @ 120hz. The product features a [Ploarization] polarity. It provides a 470 µf of capacitance value. The product has -40°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can - snap-in. It features ±20% of tolerance value. It also exhibits voltage rating of 200 v. It has the maximum seated height of 1.378" (35.00mm). Additionally, it carries a ripple current and high frequency of 2.64 a @ 100 khz. In addition, it is reach affected. Its ripple current at low frequency is 1.85 a @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 0.866" dia (22.00mm). Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product ts-ed, is a highly preferred choice for users. This product offers longer life span for 3000 hrs @ 105°c. It is assigned with 0.394" (10.00mm) of lead spacing. Moreover, it corresponds to eet-ed, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ECO-S,EET,ECE-C,ECE-T,ECE-3 Series 16/Jun/2014(PCN Obsolescence/ EOL)
pdf icon
Form, Labeling, Material 07/May/2013(PCN Design/Specification)
pdf icon
Snap-In Al electrolytic REACH 07/May/2013(PCN Other)
pdf icon
TS-ED Series Datasheet(Datasheets)

Reviews

  • Be the first to review.

Enrgtech offers the world's largest selection of electrical and electronic components in stock and available for Aluminum Electrolytic Capacitors, including Panasonic Electronic Components EET-ED2D471BA, with immediate shipment. We are committed to providing you Panasonic Electronic Components EET-ED2D471BA from leading manufacturers Panasonic Electronic Components trusted worldwide with full access to our products and services through our online eCommerce platform. Aluminum Electrolytic Capacitors consisting of Panasonic Electronic Components EET-ED2D471BA are made from two sheets of aluminum foil and a piece of electrolyte-soaked paper. The Panasonic Electronic Components EET-ED2D471BA' anode aluminum foil is anodized on one side to generate a weak layer of oxide, and the cathode aluminum foil is non-anodized; the anode and cathode are separated by electrolyte-soaked paper. The Panasonic Electronic Components EET-ED2D471BA from Aluminum Electrolytic Capacitors is found in many applications such as computer motherboards and power supplies and is ideal when large capacitance is required, and current leakage isn't a significant factor.

Our expandable distribution space allows shipping order(s) Panasonic Electronic Components EET-ED2D471BA or other products on the same day they are placed in the UK, while for international buyers, the shipping takes typically 2/3 days with excellent offers. We provide our services 24-hours a day and find suitable recommendations about your needed Panasonic Electronic Components EET-ED2D471BA or track the details of the order(s) by tracking the required product number on ET16414093. Please feel free to share your thoughts regarding Panasonic Electronic Components EET-ED2D471BA by sending an email to sales@enrgtech.co.uk or contact us at +44 (0) 3303 800 157.
