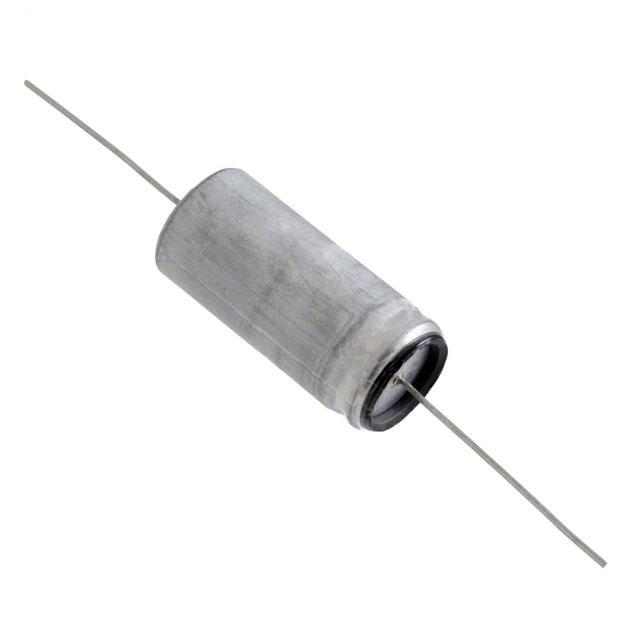

Dimensions:
20 x 46mm
Lead Length:
40mm
Equivalent Series Resistance:
11.3 mΩ @ 5 → 100 kHz (105°C), 21 mΩ @ 100 kHz (20°C), 30 mΩ @ 100 Hz (20°C)
Capacitance:
6300 µF
Tolerance:
-10 → +30%
Dielectric Material Family:
Aluminium Electrolytic
Construction:
Aluminium Can
Maximum Operating Temperature:
+105°C
Tolerance Plus:
+30%
Lead Diameter:
1mm
Length:
46mm
Leakage Current:
476.5 μA
Package/Case:
Axial, Can
Diameter:
20mm
Ripple Current:
2.45 (A @100 Hz 105°C), 3.6 (A @= 5 kHz 105°C), 5.5 (A @= 5 kHz 100°C), 9.9 (A @= 5 kHz 80°C), 12.1 (A @= 5 kHz 60°C)
Mounting Type:
Through Hole
Series:
PEG130
Tolerance Minus:
-10%
Voltage:
25 V dc
Minimum Operating Temperature:
-40°C
Lifetime:
37000 h @ +105 °C/Ir
Technology:
Electrolytic
CAD Drawing:
3D CAD Model
Ratings:
-
HTSUS:
8532.22.0040
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
30mOhm @ 100Hz
Polarization:
Polar
Capacitance:
6300 µF
Operating Temperature:
-40°C ~ 105°C
Package / Case:
Axial, Can
Tolerance:
-10%, +30%
Voltage - Rated:
25 V
Height - Seated (Max):
-
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
2.45 A @ 100 Hz
edacadModel:
PEG130HL4630QL1 Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/4918899
Package:
Bulk
Size / Dimension:
0.787" Dia x 1.811" L (20.00mm x 46.00mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
PEG130
Lifetime @ Temp.:
37000 Hrs @ 105°C
Lead Spacing:
-
Base Product Number:
PEG130H
ECCN:
EAR99
