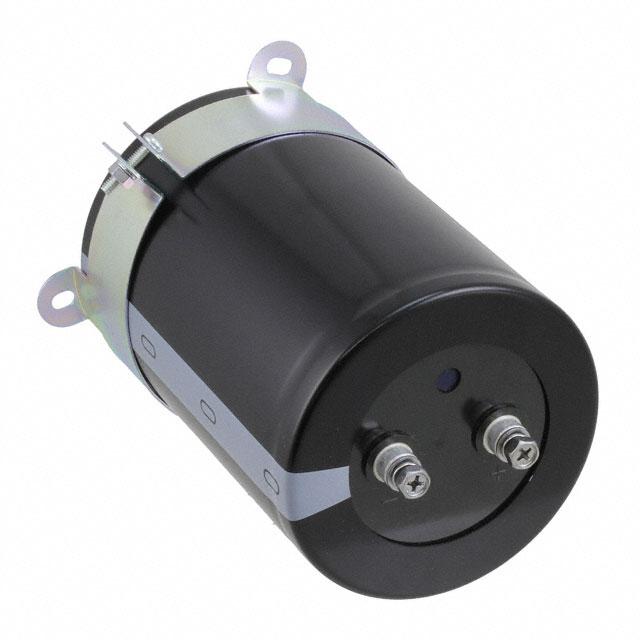

Nichicon LNY2W153MSEJ

LNY2W153MSEJ Nichicon
LNY2W153MSEJ
Nichicon

Product Information

Diameter:
90mm
Ripple Current:
29.6A
Dimensions:
90 (Dia.) x 220mm
Mounting Type:
Screw Mount
Series:
NY
Height:
220mm
Capacitance:
15000 µF
Voltage:
450 V dc
Leakage Current:
5000 μA
Lifetime:
2000h
Maximum Operating Temperature:
+85°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0085
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
15000 µF
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Radial, Can - Screw Terminals
Tolerance:
±20%
Voltage - Rated:
450 V
Height - Seated (Max):
8.661" (220.00mm)
Ripple Current @ High Frequency:
41.44 A @ 10 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
29.6 A @ 120 Hz
edacadModel:
LNY2W153MSEJ Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2209693
Package:
Bulk
Size / Dimension:
3.543" Dia (90.00mm)
standardLeadTime:
62 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Series:
LNY
Lifetime @ Temp.:
2000 Hrs @ 85°C
Lead Spacing:
1.252" (31.80mm)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Nichicon. The manufacturer part number is LNY2W153MSEJ. Its diameter is 90mm. Furthermore, 29.6a is the ripple current. The given dimensions of the product include 90 (dia.) x 220mm. The product is available in screw mount configuration. The product ny, is a highly preferred choice for users. In addition, the height is 220mm. It provides a 15000 µf of capacitance value. It carries a 450 v dc of voltage. It harbors 5000 μa of leakage current. It provides a long-lasting service for a period of 2000h. It has a maximum operating temperature of +85°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0085. The product is rohs3 compliant. The product features a [Ploarization] polarity. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in radial, can - screw terminals. It also exhibits voltage rating of 450 v. It has the maximum seated height of 8.661" (220.00mm). Additionally, it carries a ripple current and high frequency of 41.44 a @ 10 khz. In addition, it is reach affected. Its ripple current at low frequency is 29.6 a @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 3.543" dia (90.00mm). It has a long 62 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The product lny, is a highly preferred choice for users. This product offers longer life span for 2000 hrs @ 85°c. It is assigned with 1.252" (31.80mm) of lead spacing. The product is designated with the ear99 code number.

pdf icon
NY Series ALUMINUM ELECTROLYTIC CAPACITORS Data Sheet(Technical Reference)
pdf icon
LNY Series(Datasheets)
pdf icon
Snap-In Terminal, Terminal-Shape(Datasheets)
pdf icon
Screw Terminal Type, Dimension of Bracket/Bushing(Datasheets)

Reviews

  • Be the first to review.

Enrgtech offers the world's largest selection of electrical and electronic components in stock and available for Aluminum Electrolytic Capacitors, including Nichicon LNY2W153MSEJ, with immediate shipment. We are committed to providing you Nichicon LNY2W153MSEJ from leading manufacturers Nichicon trusted worldwide with full access to our products and services through our online eCommerce platform. Aluminum Electrolytic Capacitors consisting of Nichicon LNY2W153MSEJ are made from two sheets of aluminum foil and a piece of electrolyte-soaked paper. The Nichicon LNY2W153MSEJ' anode aluminum foil is anodized on one side to generate a weak layer of oxide, and the cathode aluminum foil is non-anodized; the anode and cathode are separated by electrolyte-soaked paper. The Nichicon LNY2W153MSEJ from Aluminum Electrolytic Capacitors is found in many applications such as computer motherboards and power supplies and is ideal when large capacitance is required, and current leakage isn't a significant factor.

Our expandable distribution space allows shipping order(s) Nichicon LNY2W153MSEJ or other products on the same day they are placed in the UK, while for international buyers, the shipping takes typically 2/3 days with excellent offers. We provide our services 24-hours a day and find suitable recommendations about your needed Nichicon LNY2W153MSEJ or track the details of the order(s) by tracking the required product number on ET11267649. Please feel free to share your thoughts regarding Nichicon LNY2W153MSEJ by sending an email to sales@enrgtech.co.uk or contact us at +44 (0) 3303 800 157.
